ECP-AA1 Dimensions & Mounting Instructions

	Dimensions (WxHxD)	Weight
TCIS	180 x 120 x 70 mm	0.8 kg*
TCIS after flushmount	180 x 120 x 20 mm
TCIS with onwall box	180 x 120 x 82 mm

*) TCIS-2 weight: 1.0 kg

TCIS Compact Station Dimensions

Onwall Surface Mounting

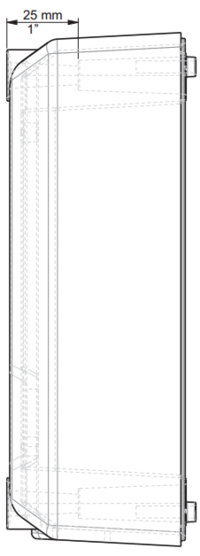

On-Wall Surface Mount Back Box - TA-1

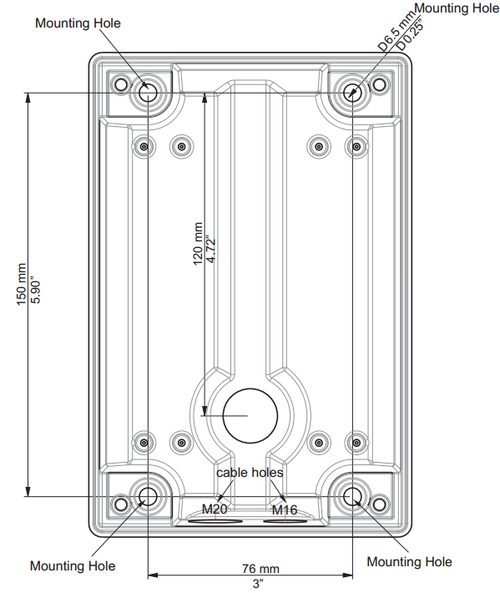

Mounting holes are to be drilled as shown.

Max. recommended screw diameter: ISO M6 or ANSI 1/4". Screw length must be greater than 25 mm or 1". A4 stainless steel socket head screws/bolts are recommended. Max. recommended screw head diameter: 9.5 mm or 3/8".

Optional nylon washers for extra protection against corrosive effects between surfaces are provided. They should be placed at the bottom of the mounting holes. Grommets and an M20 cable gland are provided.

On-Wall Surface Mounting Procedure

1. Mount the back box onto the wall

2. Fit the gasket onto the back box with the ridged side facing down

- Plug the Ethernet cable into the RJ-45 port on the station

3. Mount the Turbine station onto the back box with the M5 fasteners provided

Ensure the station is mounted vertically with the microphone aperture facing down

Ensure there is enough clearance under the station so that the microphone aperture is not smothered

Use the grommets and M20 cable gland provided for the cable holes on the back box

Flush Mounting

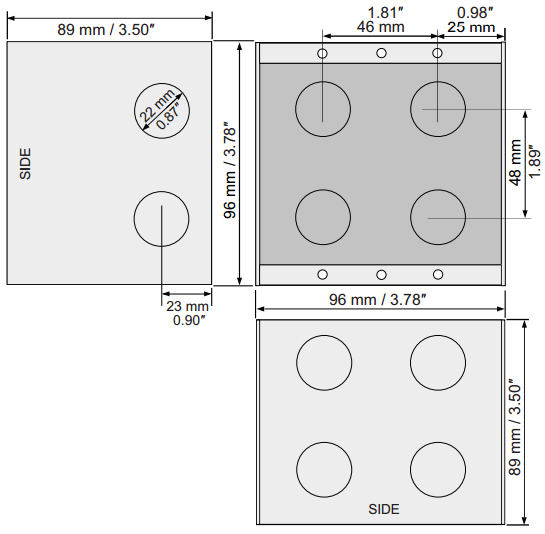

Flush Mount 2-Gang Back Box - TA-2

Note! It is recommended to utilize back boxes with weep holes at the bottom

Flush Mount Bracket - TA-5

Fits US 2-GANG electrical boxes. Recommended screw diameter: up to M4 (5/32"). Use screw recommended by back box manufacurer.

Note! The TA-5 Bracket is mandatory for flush mounting.

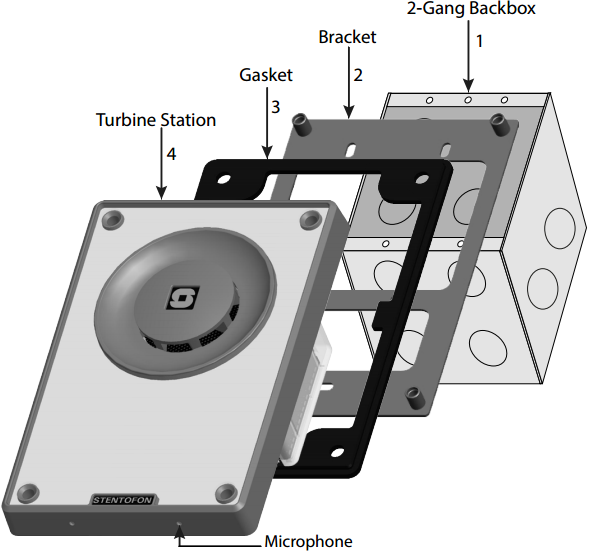

Flush Mounting Procedure

1. Mount the 2-gang back box into the wall

2. Mount the bracket onto the back box

3. Fit the gasket onto the bracket with the ridged side facing down

–Plug the Ethernet cable into the RJ-45 port on the station

4. Mount the Turbine station onto the bracket with the M5 fasteners provided

Ensure the station is mounted vertically with the microphone aperture facing down

Ensure there is enough clearance under the station so that the microphone aperture is not smothered
