ECP-AA1 Dimensions & Mounting Instructions

From Zenitel Wiki


The ECP-AA1 is flush-mounted using 4 screw of type:

  • M4x16 DIN 7991 A4 - Flat Head Socket Cap Screw, Stainless Steel A4 DIN7991
  • Length as required

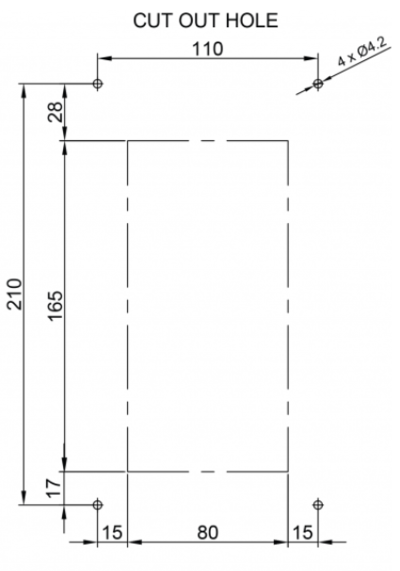

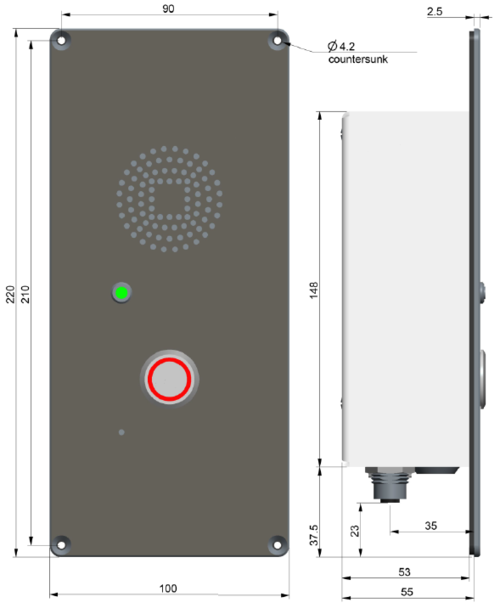

'ECP-AA1 - Front and side view Cut Out
