This article describes how to install ICX-Core in a Hyper-V environment.

Prerequisites

Note icon The virtual machine must have an internet connection during the installation process


Hyper-V

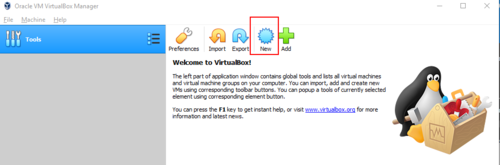

After downloading and installing VirtualBox, run the software and create the virtual machine by clicking "New":

ICX VB1.png


Give your machine a name, set Type = Linux, and set Version = Ubuntu:

ICX VB2.png


The memory must be at least 1GB:

ICX VB3.png


Create the virtual HDD:

ICX VB4.png


Select the HDD type:

ICX VB5.png


Physical HDD storage:

ICX VB6.png


The HDD must be minimum 15GB:

ICX VB7.png

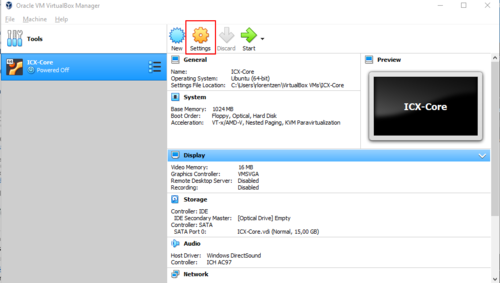

After the creation of the virtual machine is finished, select and set some Settings before starting:

ICX VB8.png

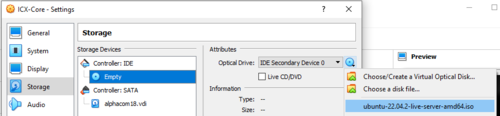

In Storage, browse for the OS .iso file (Ubuntu 18.04.x LTS Server) and mount it:

ICX VB9.png

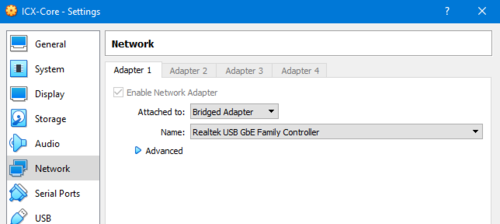

Set up the Network connection:

  • Choose Bridged Adapter, and select which interface to use for the ICX-Core
ICX VB10.png

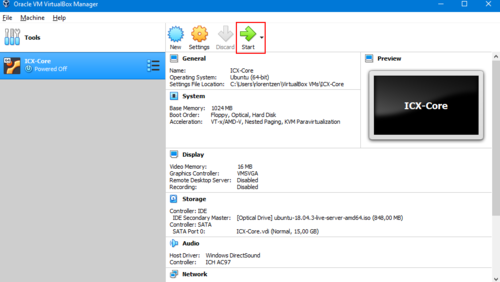

Now Start the machine:

ICX VB11.png


Ubuntu

The Ubuntu installation will automatically launch after Start in the previous section. Choose your language:

ICX VB12.png


Define your keyboard:

ICX VB13.png


Confirm the network adapter:

ICX VB14.png


Enter Proxy if needed:

ICX VB15.png


Confirm mirror:

ICX VB16.png


Filesystem:

ICX VB17.png


Select HDD:

ICX VB18.png


Confirm partition:

ICX VB19.png


Confirm installation:

ICX VB20.png


Enter profile and credentials. VERY important to not forget this. Write it down!:

ICX VB21.png


Note icon The selected Username will also name the host folder for the ICX-Core


Select Install OpenSSH server:

ICX VB22.png


Skip:

ICX VB23.png


The installation is now running:

ICX VB24.png


Installation complete! Hit Enter key to reboot:

ICX VB25.png


The virtual machine reboots and starts up with Ubuntu running in terminal mode.

ICX-Core

Log in with the username and password defined earlier. Use command "ip a" to see the IP address that the virtual machine has:

ICX VB26.png


Connect to the virtual machine with WinSCP ...

ICX VB27.png


... and copy the ICX-Core installation file from your computer to the virtual machine:

ICX VB28.png


Note icon the target folder must be /home/[Username]/


Close WinSCP.

Install ICX-Core using the command (case sensitive):

sudo tar -xf ICX-Core-01.00-bionic-1.0.3.0.apt.tar install.sh --to-command /bin/sh


Where ICX-Core-01.00-bionic-1.0.3.0.apt.tar is the ICX-Core file name.

ICX VB29.png


After installation, you can access the ICX Web from any PC in the network by using the IP address of the virtual machine.

ICX VB30.png
