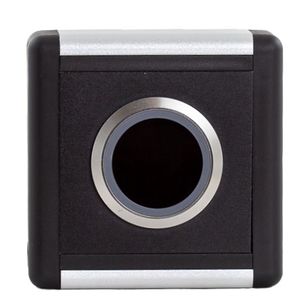

The Touchless sensor (item 2390020100) is a sensor for activation without pressing a button.
This may prevent disease contagion. It is suitable for access control system that widely used in widely used in public areas such as hospitals or restaurants. It is also can be used as auto-control detection.
Highlights
- Input Voltage: 5V
- Available contacts: Normally Open & Normally Closed
- Operating distance 3 to 20 cm (adjustable)
- IP 66
Connections
Connections are made to the switch using the supplied 5 pin plug.
Correct orientation of the plug is ensured by the connector locating guides.
Color code
- Red - +5 Volt supply
- Brown - 0 Volt supply
- Green - Normally Closed
- Blue - Common
- Purple - Normally Open

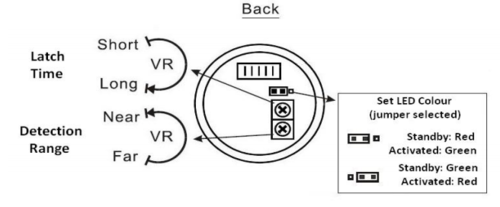

Settings
Typical Application
