ENA2x00-AC2 Status LEDs
From Zenitel Wiki
Revision as of 12:19, 13 June 2024 by Roarl (talk | contribs) (Created page with "{{AIS}} The ENA2100-AC2 Amplifier and ENA2200-AC2 Amplifier has '''status LED indicators''' in the front panel: File:ENA2x00 LEDS.png|thumb|left|500px|ENA2x00-AC2 -...")

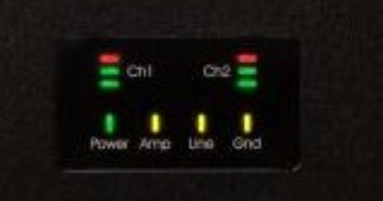

The ENA2100-AC2 Amplifier and ENA2200-AC2 Amplifier has status LED indicators in the front panel:
- Power: Steady green light when the amplifier is powered on
- Amp: Steady amber when one or both speaker lines are monitored (either in manual or continuous mode). Otherwise off.
- Line: The amberfault LED will be lit whenever the amplifier detects an error. Which errors to report is configurable. See ENA Amplifier - Monitoring. The Fault LED is lit during the startup sequence
- Gnd: This amber LED will be lit if there is a Ground Fault detected
In addition each channel has a vu meter
- Ch1: This Green and Red LED is lit when there is audio activity on loudspeaker channel 1
- Ch2: This Green and Red LED is lit when there is audio activity on loudspeaker channel 2
