Configuration of the ZDD-1 (ZCP)

This article describes configurations that are specific to the ZDD-1 intercom when used with the Zenitel Connect Pro (ZCP).

Display GUI Settings / Display Panel Settings

The configuration of the display of the ZDD-1 intercom station is done from the Zenitel Connect Pro web interface. From the Devices and Connections section, select Configuration. Select the ZDD-1 station to configure, the click the Display Settings icon.

General Settings

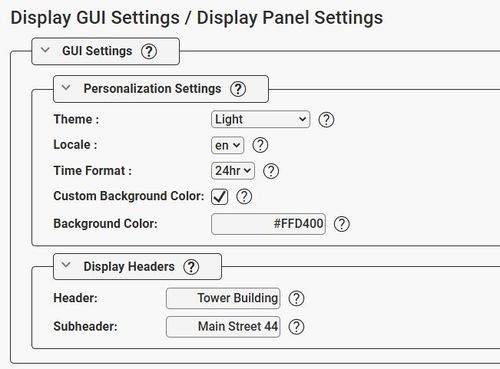

GUI Settings

Personalization Settings

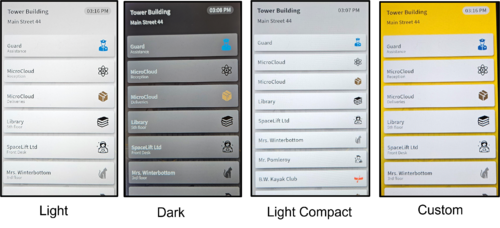

Themes options

• Theme: Options are:
  • Light: Standard light theme. 6 entries per page. (Default theme)
  • Dark: Standard dark theme. 6 entries per page.
  • Light Compact: Light theme for display, with compact elements. 8 entries per page.
• Locale: Sets the language for the text in the display. Note: The language in the web interface will not change.
• Time Format: Select if the time shown in the top right corner of the display should be in 12 or 24 hour format.
• Custom Background Color: An option to use Custom Color theme.
• Background Color: Choose color in RGB hex format.

Display Headers
ZDD-1 offers an option to show two lines of text in the top left corner of the display. This can typically be Company name and Address.

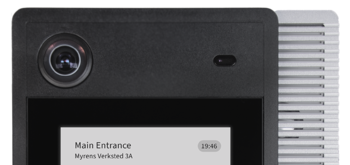

Display Header in ZDD-1

Display Settings

Brightness Mode Settings
When Brightness Mode is set to Manual, one can adjust the Brightness with a slider from 0 (off) to 100. The value 50 is default.

When Brightness Mode is set to Automatic, the brightness is controlled by the sensor on the front panel, and will adjust automatically according to ambient brightness. When enabling Advanced Configuration mode one get the following options in addition:

• Brightness Offset: Adjust the deviation from the automatic brightness level in the range -99 to +99. Default value = 0.
• Brightness Levels: Allows choosing the granularity of the automatic brightness levels in the range 5 to 20. A bigger number means more gradual brightness transitions. Default value = 5.
• Transition Delay: Time between a sudden brightness change in front of the sensor and the corresponding brightness adjustment. Range: 1 to 10 seconds. Default = 1 second.

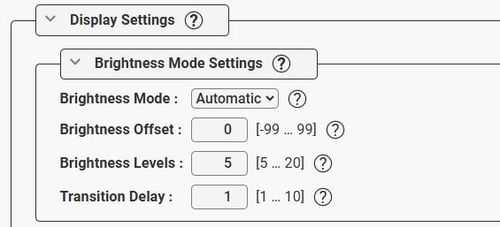

Automatic Brightness adjustments

Display Dimming Settings

• Display Dimming: When enabled the display will go to "sleep mode" after a preset time.
• Dim Brightness: This sets the brightness level when the display goes to sleep (default = 5).
• Dim Display After: After a call is ended (or motion is not detected) the display will go to "sleep mode" after this time (mm:ss)
• Wake On Motion: When enabled the display will "wake up" when the sensor detects motion in front of the station. Note: The display will always wake up when touched.
  • Maximum Detection Distance: Sets the max. distance for detecting the motion. Range is 0.2 to 2.0 meters (Default = 2m).
  • Detection Sensitivity: Sets how sensitive the detection should be in 5 levels; Low, Medium Low, Medium, Medium High, High (default)

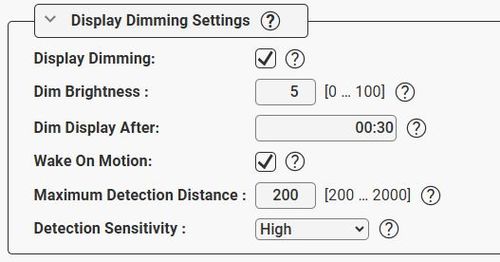

Display Dimming

Call List (Address Book)

The configuration of the display of the ZDD-1 intercom station is done from the Zenitel Connect Pro web interface. From the Devices and Connections section, select Configuration. Select the ZDD-1 station to configure, the click the Buttons icon. Click on the "+" button to the right to add a new entry. Space is reserved for up to 50 entries.

• Dial String: The extension number to dial when the entry is pressed
• Label: Is the main text of the entry
• Sublabel: Is a sub-text in smaller fonts (optional)

Use the UP and DOWN arrows to the right of the entry to move the entry up or down in the list, and the Recycle Bin icon to delete an entry.

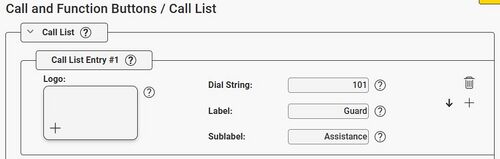

Call List entry

Adding a logo:

• Select the "+" sign in the Logo rectangle.
  • Select an already existing image
  • Add a new logo to the repository by drag and drop the image file into the area indicated, or

Only .svg (Scalable Vector Graphics) image, max. 500kB, files will be accepted

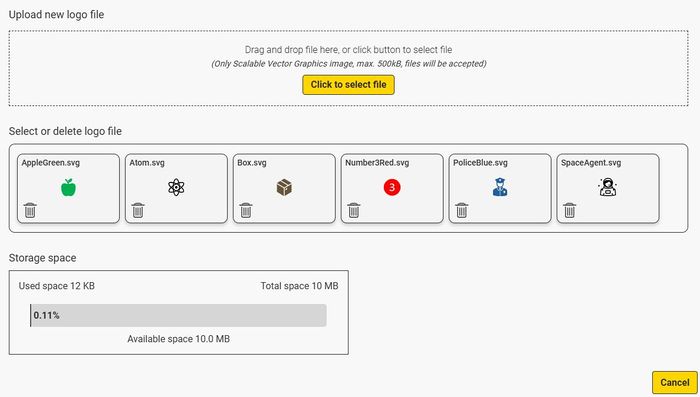

Adding logo to the call entry
