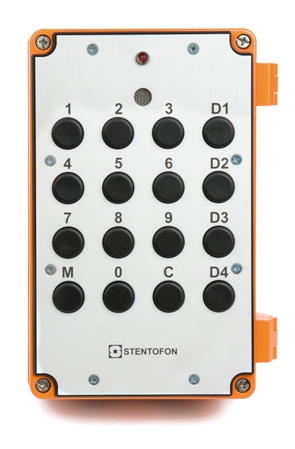

Heavy Duty Industrial Master Station - 1007086000
From Zenitel Wiki
Contents
Features
- Master station with free access to all extensions and features
- Rugged waterproof and dustproof casing of orange silumin (aluminium alloy)
- Microphone along with red microphone live lamp
- External loudspeaker. Sound level adjustable with a potentiometer inside the station
- Built-in 10 W (8 ohm) VOX operated power amplifier for external loudspeaker
- Screw terminals for easy connection of installation cables
- Freely programmable extension number (up to 8 digits as from AMC software version 9.0)
- Equipped with 4 direct access keys
Description
This Industrial Master station is a waterproof model designed for humid, dirty and outdoor conditions. The unit can operate in an ambient temperature range from -20o to +50oC (-4oF to +122oF). The station consists of a rugged waterproof and dustproof casing (Ip65) of orange silumin. The front panel is hinged to the back casing to allow easy access during installation and service. The station has screw terminals with labels and the 4 glands allow waterproof and dustproof connection of installation cable and loudspeaker wires.
The station is equipped with an internal electret microphone. The volume is adjustable with a potentiometer located inside the casing. An external 20- 70 ohm speaker can be connected or, alternatively, connect an 8-20 ohm speaker for use with the built-in 10 W (8 ohm) VOX operated power amplifier. The power amplifier requires a separate 12 V AC/2 A power supply. The external speaker must be placed at least one meter away from the station.
The station is programmable for permanent private mode and is also prepared for connection of an external handset unit.
Installation
Wiring
