Console Master Station - 1007043000

Console Master Station 1007043000

Highlights

• Ideal for public address applications
• Fully equipped master station with free access to all extensions and features
• Eight freely programmable single touch keys
• 2 x 16 character alphanumeric display
• Rugged front plate of anodised brushed aluminium
• Private / Open switch
• Dynamic gooseneck microphone
• Adjustable loudspeaker volume

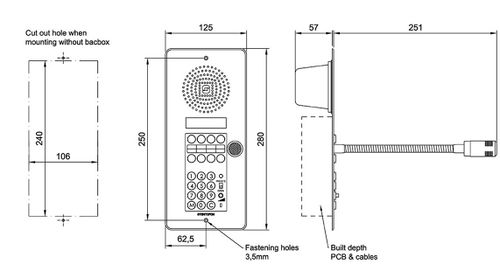

Dimensional Drawing

Installation

Connection diagram of the 7043 station

Programming DAK

The upper row of DAK keys are DAK 3, 5, 7 and 9 counted from left to right. The lower row of DAK keys are DAK 4, 6, 8 and 10 counted from left to right.

Mounting

The station can be mounted in:

• On-wall back box 1000603000, or
• Flush mount back box 1000602000
