1-1c. AlphaPro - Getting started (solution)

System configuration

Install AlphaPro on a computer by running the setup.exe file and follow the instructions on the screen
After the AlphaPro installation has finished, install the driver for the Hardware Key:

Install the driver for the Hardware Key

3. Start AlphaPro by doubleclicking the AlphaPro icon on your desktop
4. You will be prompted to create a new Network and a new Exchange

Create new Network and Exchange

In AlphaPro go to Users & Stations in the main menu
Select physical number 1; 101 SystemStat.
Use the section on the right and change the directory number to 416
- You will be prompted that this number already exist, and if you want to replace it. Click Yes
Change the name to Reception, click Ok
Select physical number 2; 102 Station 2
Use the section on the right and change the directory number to 6540
Change the name to T. Edison, click Ok

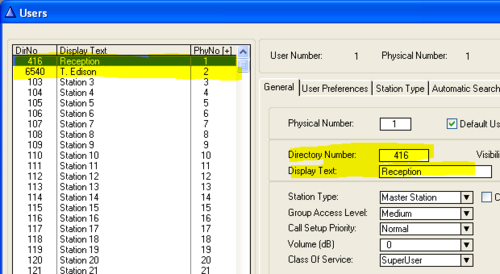

AlphaPro: Users & Stations

Connect the PC to ethernet port 0 of the AlphaCom
In AlphaPro click on SendAll
You will be prompted to log in
- Default username: admin
- Default password: alphaadmin
The whole database will now be sent to the exchange. When it is finished, click Close

Check that the displays on the two master stations show 416 Reception and 6540 T. Edison
On the reception station dial 6540 and observe that the call is connected. Test both incoming and outgoing audio
On the T. Edison station dial 416 and observe that the call is connected. Test both incoming and outgoing audio
