1-3b. IP Stations – Substations (solution)

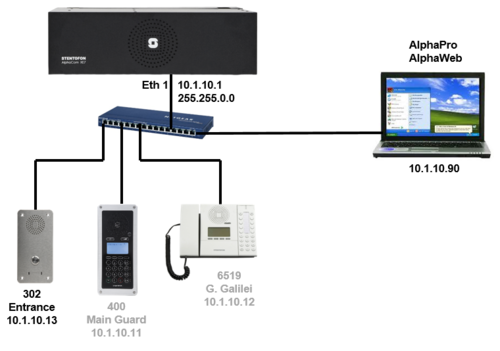

System configuration

Station configuration

Configure the IP Substation

• Perform a "Factory Default" setting on the IP Substation:
  • Press the call button
  • While the button is pressed, connect the IP Substation to the PoE switch
  • Wait until the call LED of the station has flashed two times
  • Release the call button and wait for two new flashes
  • Push the button briefly after the two flashes
• Assign the PC an IP address in the range 169.254.x.x
• Connect the PC to the network switch

Accessing the IP Substations web page

• On the PC start a web browser, and enter the IP station address 169.254.1.100 in the address field
• Log in with Username: admin, password: alphaadmin
• Select Station Main -> Main Settings, and enter the following parameters:

Enter the IP settings in the IP Station web page

• Connect the IP substation and the AlphaCom XE (Eth1) to the same network switch

Configure the AlphaCom XE

• In AlphaPro go to Users & Stations, and select physical number 39; 139 Station 39

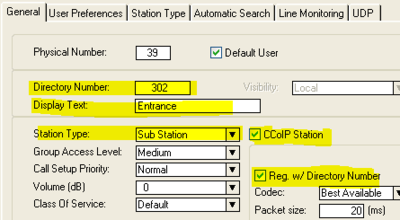

• Use the section on the right and change the configuration as follows:

AlphaPro: Users & Stations window

Call Button

• In AlphaPro, Users & Stations, select physical port 39. Then press the button DAK, and configure as follows:

AlphaPro: Users & Stations -> DAK window

• Send the changes to the AlphaCom XE

Troubleshooting

• If the IP station does not register, check the following:
  • In AlphaWeb, System Configuration -> Filters, verify that port for IP Stations and VoIP Audio is enabled
  • In AlphaWeb, System Configuration -> Licenses, verify that there are licenses installed for the IP stations

---

Related articles

• 1-3b. IP Stations – Substations (practice)
