1-3d. IP Stations – SIP Station X-Lite (solution)

System configuration

Install and configure the X-Lite SIP client

• Download X-Lite from the internet http://www.counterpath.com/x-lite.html, and install it on the PC
• During installation you are asked to create a SIP account. Fill in these parameters:

X-Lite: SIP account

• Change the IP address of the PC to 10.1.10.90, and subnet mask 255.255.0.0
• Start the X-Lite

Configure the AlphaCom XE

• In AlphaPro go to Users & Stations, and select physical number 41; 141 Station 41
• Use the section on the right and change the configuration as follows:

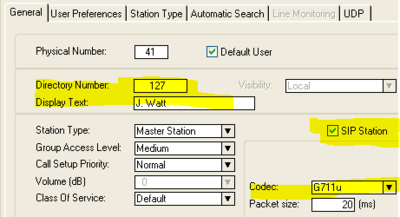

AlphaPro: Users & Stations window

• Send the changes to the AlphaCom XE

Troubleshooting

• If the X-Lite does not register, check the following:
  • In AlphaWeb, System Configuration -> Filters, verify that ports for SIP and VoIP Audio are enabled
  • In AlphaWeb, System Configuration -> Licenses, verify that there are licenses installed for SIP Stations





---
