1-4b. Main Features - All Call, Group Call, ReCall (solution)

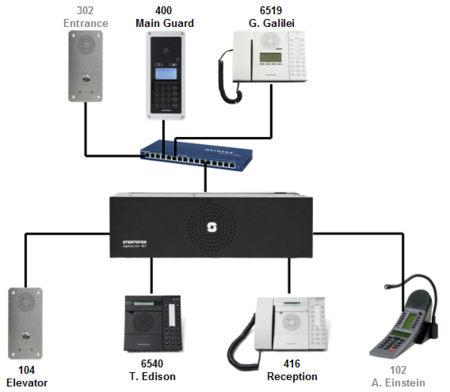

System configuration

Solution

All Call

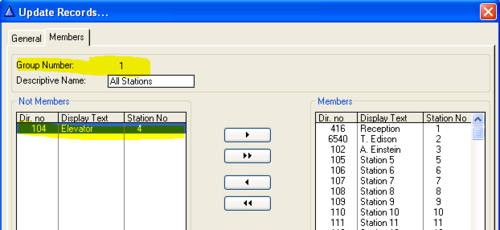

• All stations except the Elevator should receive the All Call:

All Call membership

• Only the Reception and the Main Guard should be able to initiate All Call:

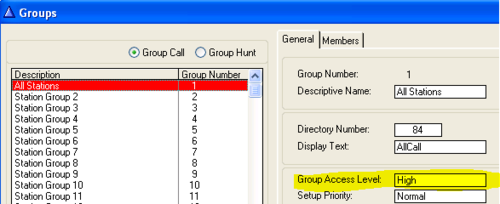

Set "Group Access Level" = High

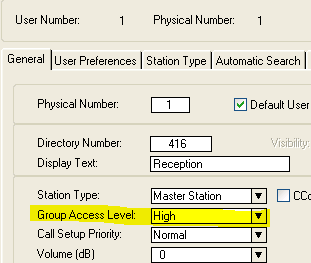

Set "Group Access Level" on Reception and Main Guard = High

ReCall

• Making an All Call from the Reception is causing acoustic feedback because the station is close to Mr. Edison. Use ReCall to avoid this (No programming required):
  • Dial 9084. Press M-key to record, and digit 8 to dispatch.

• Are there other possibilities to avoid acoustic feedback?

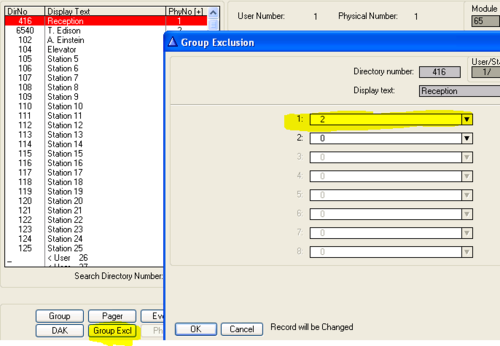

  • Mutal Group Exclusion:

Select Mr. Edison (station 2) in the Group Exclusion list

Group Call

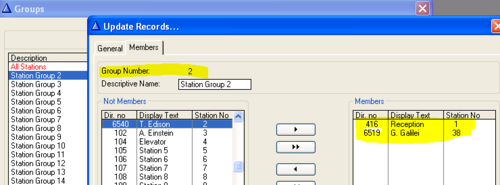

• Only the Reception and Mr. Galilei should receive Group Call 2 (85):

Group Call membership

• Anyone can initiate the Group Call:
  • Everyone can initiate Group Calls by default. No programming required.

Group Call Priority

• If the All Call is initiated while the Group Call is active, the Group Call should automatically disconnect in order to let the All Call get through:

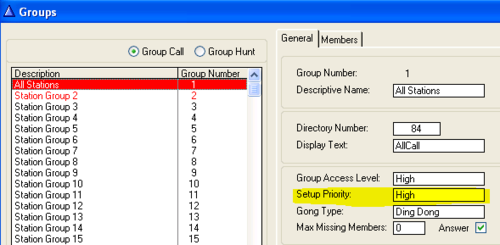

For All Call set the "Setup Priority" = High

---
