1-4d. Main Features - Audio Program (solution)

From Zenitel Wiki

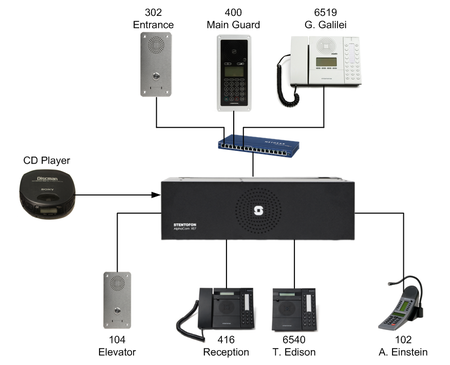

System configuration


Solution

Audio Program

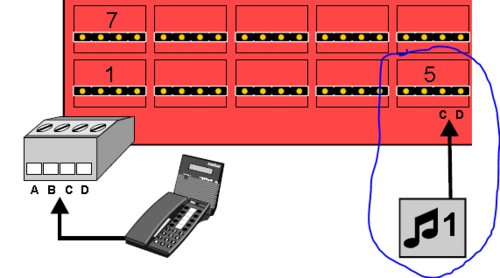

  • Connect a CD-player, an iPod, a PC or another audio device to the program input on physical port 5:
Connect the audio source to the c- and d-wire of port 5



  • All master stations should be able to individually listen to the Audio Program by dialling the appropriate code (No programming required):
    • Dial 805 to listen to the Audio Program channel.


  • The "Audio Program" audio should stay on even if the intercom stations are in conversation:

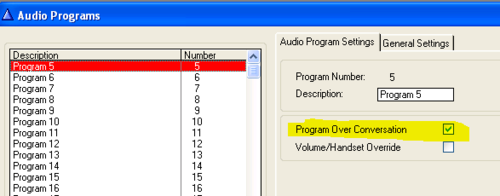

For program 5, enable the flag "Program over Conversation"



Remote Setup

  • The Reception should be able to turn on "Audio Program" to the Elevator by pressing a single button (DAK). Another DAK key should turn the "Audio Program" off:

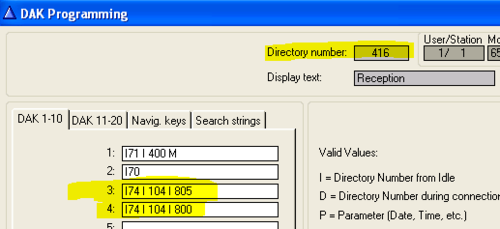

Program the DAK keys of the Reception to dial 74 + the elevator + program channel"
