1-4i. RCI - Remote Control Input (solution)

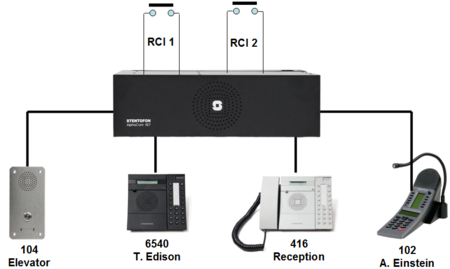

System configuration

Solution

Alarm Message Distribution (AMG):

• The fire alarm system provides a relay contact that closes when the fire alarm is activated. This contact should be connected to RCI 1 and start a prerecorded Fire Alarm Message to all stations.
• The Fire Alarm Message should stop when the relay contact opens.

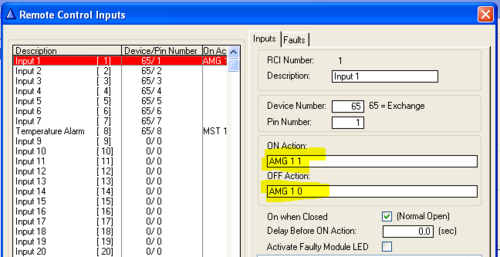

In AlphaPro, Exchange & System -> RCI, select Input 1, and program the ON and OFF action

Mail To Station (MST):

• A temperature alarm is connected to RCI 2. When the contact closes, a text message saying "Temp alarm" should be sent to the "Reception".

In AlphaPro, Exchange & System -> RCI, select Input 2, and program the ON action

---
