3rd Party SIP phones (Zenitel Connect Pro)

3rd Party SIP phones can be added to the Zenitel Connect Pro (ZCP) system.

Requirements

• ZCP firmware 1.7.0 or newer
• The SIP phone must support:
  • SIPS protocols (TLS 1.2 and SRTP) and SIP Port 5062
  • Audio codec G.722 or G.711
  • Video codec H.264 (if video calls are required)

Supported features

Zenitel does not guarantee that all features available in the Zenitel Connect Pro will work with a 3rd Party SIP phone.

Creating a Generic SIP account

In the Zenitel Connect Pro web interface select Devices and Connections -> Configuration, select the icon .

As a minimum enter:

• Directory Number: The extension number of the SIP phone
• Name: Any text
• Device Type: Generic SIP

You also need to read the SIP Account Password as this needs to be configured in the SIP phone.

Creating a SIP account

Certificate

From System > Certificates download the TLS certificate “ZCP autogenerated internal CA certificate” and install in the SIP phone

The Operational Status should change to Operational when the SIP phone is registered.

Testing the SIP account

To test your SIP account you can use e.g. MicroSIP. MicroSIP is a free and open-source softphone application for Windows that allows users to make voice and video calls using the SIP protocol. Here is Download link.

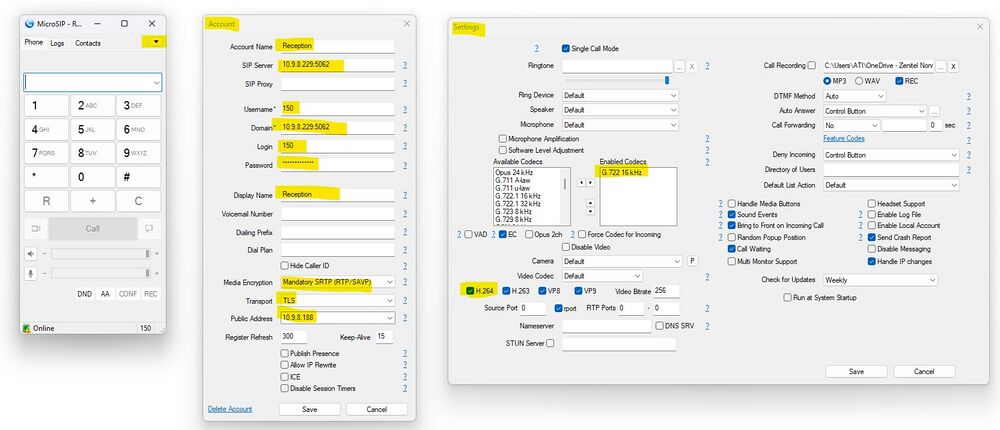

Here is a screenshot of required settings:

Configuration of MicroSIP

Account:

• Account Name: Any descriptive text
• SIP Server: The IP address of the ZCP server and the TLS port number (e.g. 10.9.8.7:5062)
• Username: The directory number as entered in ZCP
• Domain: The IP address of the ZCP server and the TLS port number (e.g. 10.9.8.7:5062)
• Login: The directory number as entered in ZCP
• Password: The SIP Account Password found in ZCP
• Display Name: The Caller ID, shown to the other party in a call.
• Media Encryption: Mandatory SRTP (RTP/SAVP)
• Transport: TLS
• Public Address: Select the network interface of the laptop used for connection to ZCP

Settings:
Make sure that:

• Audio codec G.722 is enabled
• Video codec H.264 is enabled
