ANS Connections to Onboard GPIO and BMB
 |
| ANS Connections |
|
The 240ohm resistor is fitted at the rack terminals |

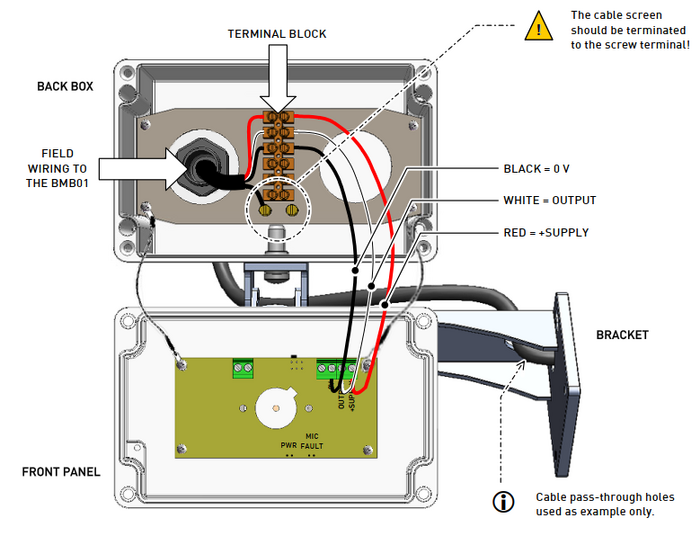

ANS Field/Power Connections
 |
| Field/Power Connections |
| Signal | Internal Wiring Colour | Notes |
| + Supply | Red | 21 to 40 V DC from central rack |
| Output | White | 4-20 mA current feed to central rack |
| 0V | Black | 0 V connection to central rack |
| Spare | For looping cable through to second Ambient Noise Sensor | |
| Spare | For looping cable through to second Ambient Noise Sensor | |
| Spare | For looping cable through to second Ambient Noise Sensor |
