This article describes how to add a Stentofon Intercom station to Cisco Unified Call Manager 10.
Please note that this is the minimum configuration to get a Turbine station successfully registered to a Cisco Call Manager.
Adjust needed parameters to fit your configuration.
Turbine stations does not support VLAN tagging or CPD, so please ensure that the station is connected to an access port!
Configuring Cisco Call Manager
The first step is to add an end user to associate with the Intercom Station, then add the phone hardware and configure extension number.
Add new End User
User Management -> End User -> Add New
|User ID||The user ID of the station user. This value must be entered under auth name on the Turbine station.|
|Password||User password. _NOT_ the same as SIP auth password.|
|Digest credentials||If digest authentication is enabled in the SIP security profile, this value will be used as SIP password.|
Add new Phone
Device -> Phone -> Add New
- Phone Type: Third-Party SIP Device (Basic)
Note! If you are using TCIV and want video functionality (Not officially supported) you must use Third-Party SIP Device (Advanced), as Basic does not allow video.
|MAC-Address||Intercom station MAC address|
|Description||Optional description (Autocompletes)|
|Device Pool||Your configured device-pool.|
|Phone Button Template||Third-Party SIP Device (Basic)|
|Calling Search Space||Your configured Calling Search Space.|
|Media Resource Group List||Your configured Media Resource Group List|
|Owner User ID||Select the End User we configured in previous step|
|Device Security Profile||Third-Party SIP Device Basic - Standard Non-secure profile*|
|SIP Profile||Standard SIP Profile|
|Digest User||Select the End User we configured in previous step.|
Note! *This guide uses a security profile without digest authentication. If you want username/password authentication on the Intercom station you must create a secure SIP profile with digest authentication.
- In the upper left corner, press "Line  - Add a new DN".
|Directory number||Enter wanted directory number|
|Route Partition||Your configured Route Partition|
|Calling Search Space||Your configured Calling Search Space|
- Press Save
- Press Save/Restart
Configuring the Stentofon SIP Intercom

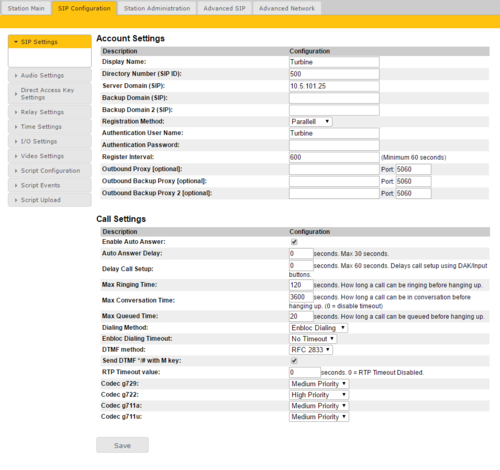

SIP Account settings
Please note that if configuring device to use multiple SIP servers, it is recommended to review Registration method
|Directory Number (SIP ID)||The configured DN the station is using.|
|Server Domain||IP-address of Cisco Call Manager server|
|Registration method||Preferred registration method. If multiple servers choose serial.|
|Authentication Username||Username of the End user associated with the phone. (Digest user)|
|Authentication Password||Digest password configured on the End User. Note that Digest Authentication on the CUCM must be enabled if using this.|
|Register Interval||How often the Turbine should send SIP register.|
