Cisco Call Manager 8 configuration guide

From Zenitel Wiki

AlphaCom icon 300px.png

This article describes how to set up Cisco Call Manager 8 with IP phones and SIP trunk line to AlphaCom.
Components used in this example:

  • Cisco Unified Call Manager version 8.0.3.20000-2
    • This configuration guide is also tested and verified for Cisco Call Manager 7 (tested version: 7.1.5.30000-1).
  • Cisco IP phone 7960
  • AlphaCom XE exchange
  • AlphaCom stations

The network is used as an example throughout this article. The network should also preferably have a DHCP server configured. In our case, the DHCP server is configured with IP addresses 1-99=static, 100-255 DHCP automatic.

Configuration example

Cisco Unified Call Manager with Cisco IP Phones

Install Cisco Unified Call Manager server and operating system

Your IT department or System Administrator installs the Cisco Unified Call Manager.

Configure the Cisco Unified Call Manager

  • Open a browser window and type in the IP address of your Cisco Unified Call Manager (CUCM).
  • Log on to Cisco Unified CM Administration with the proper Username and Password provided by your CUCM Administrator.
  • Execute the following configuration: (Parameters not mentioned should be left untouched to their default setting)


Configure a Date/Time Group

Date/Time Group Configuration
System -> Date/Time Group -> Add New
  • Group Name: Zenitel
  • Time Zone: Choose your time zone
  • Separator: -(dash)
  • Date Format: Choose your date format
  • Time Format. Choose your time format
  • Press Save
  • Press Reset/Restart


Configure a Region

Region Configuration
System -> Region -> Add New
  • Name: Zenitel
  • Press Save
  • Press Reset/Restart


Configure a SIP Trunk Security Profile

SIP Trunk Security Profile Configuration
System -> Security -> SIP Trunk Security Profile -> Add New
  • Name: AlphaCom
  • Description: AlphaCom SIP Secure Profile
  • Device Security Mode: Non Secure
  • Incoming Transport Type: TCP+UDP
  • Outgoing Transport Type: UDP
  • Enable:
  • Accept Presence Subscription
  • Accept Out-of-Dialog REFER
  • Accept Unsolicited Notification
  • Accept Replaces Header
  • Press Save
  • Press Reset/Restart


Configure a Route Partition

Partition Configuration
Call Routing -> Class of Control -> Partition -> Add New
  • Name: AllLines
  • Press Save
  • Press Reset/Restart


Configure a Calling Search Space

Calling Search Space Configuration
Call Routing -> Class of Control -> Calling Search Space -> Add New
  • Name: DefaultUser
  • Description: DefaultUser
  • Select AllLines in the ”Available Partitions” window and use the ”Move Down” arrow to move it to the ”Selected Partitions” window.
  • Press Save


Configure a Media Resource Group

Media Resource Group Configuration
Media Resources -> Media Resource Group -> Add New
  • Name: AlphaCom_MRG
  • Description: AlphaCom_MRG
  • Select MTP_2 in the ”Available Media Resources” window and use the ”Move Down” arrow to move it to the ”Selected Media Resources” window.
  • Press Save
  • Press Reset/Restart


Configure a Media Resource Group List

Media Resource Group List Configuration
Media Resources -> Media Resource Group List -> Add New
  • Name: AlphaCom_MRGL
  • Select AlphaCom_MRG in the ”Available Media Resource Groups” window and use the ”Move Down” arrow to move it to the ”Selected Media Resource Groups” window.
  • Press Save
  • Press Reset/Restart


Configure a Device Pool

Device Pool Configuration
Device Pool Configuration, continued
System -> Device Pool -> Add New
  • Device Pool Name: Zenitel
  • Cisco Unified Communications Manager Group: Default
  • Calling Search Space for Auto-registration: DefaultUser
  • Reverted Call Focus Priority: Default
  • Date/Time Group: Zenitel
  • Region: Zenitel
  • Media Resource Group List: AlphaCom_MRGL
  • Location: Hub_None
  • SRST Reference: Use Default Gateway
  • Press Save
  • Press Reset/Restart


Configure a Media Termination Point

Media Termination Point Configuration
Media Resources -> Media Termination Point -> Find, then select: MTP_2
  • Set Device Pool: Zenitel
  • Press Save
  • Press Reset/Restart


Configure a SIP Trunk

Trunk Configuration
Trunk Configuration, continued
Trunk Configuration, continued
Device -> Trunk -> Add New
  • Trunk Type: SIP Trunk
  • Device Protocol: SIP
  • Press Next
  • Device Name: AlphaCom
  • Description: AlphaCom
  • Device Pool: Zenitel
  • Media Resource Group List: AlphaCom_MRGL
  • Enable: 'Media Termination Point Required'
  • Calling Search Space: DefaultUser
  • Destination Adress: Your AlphaCom’s IP adress
  • SIP Trunk Security Profile: AlphaCom
  • SIP Profile: Standard SIP Profile
  • Press Save
  • Press Reset/Restart


Configure a Route Group

Route Group Configuration
Call Routing -> Route/Hunt -> Route Group -> Add New
  • Name: AlphaCom_RG
  • Select AlphaCom from ”Available Devices” and press ”Add to Route Group”
  • Press Save


Configure a Route List

Route List Configuration
Call Routing -> Route/Hunt -> Route List -> Add New
  • Name: AlphaCom_RL
  • Cisco Unified Communications Manager Group: Default
  • Press Save
  • Press Add Route Group
  • Route Group: AlphaCom_RG [NON-QSIG]
  • Press Save
  • Press Save
  • Press Reset/Restart


Configure a Route Pattern

Route Pattern Configuration
Route Pattern Configuration, continued
Call Routing -> Route/Hunt -> Route Pattern -> Add New
  • Route Pattern: 2xxx (This allows calls to all numbers beginning with 2 in the AlphaCom)
  • Route Partition: AllLines
  • Description: AlphaCom_RP
  • Gateway/Route List: AlphaCom_RL
  • Press Save


Configure a Phone

Phone Configuration
Phone Configuration, continued
Phone Configuration, continued
Phone Configuration, continued
Phone Configuration, continued
Device -> Phone -> Add New
  • Phone Type: Choose your IP phone type from the drop down list
  • Press Next
  • Select the device protocol: SCCP (This is the standard Cisco IP phone protocol).
  • Press Next
  • MAC Address: Enter your IP phones MAC address
  • Description: Zenitel 1030
  • Device Pool: Zenitel
  • Phone button Template: Choose your IP phones specific template
  • Device security Profile: Choose your IP phone specific profile
  • Press Save
  • In the upper left corner press ”Line [1] – Add a new DN]
  • Enter wanted directory number (here 1030)
  • Route Partition: AllLines
  • Calling Search Space: defaultUser
  • ASCII Display (Internal Caller ID): CISCO 7960 (This is the wanted name for the phone. This name will be displayed in the AlphaCom stations, and should thus be configured the same as the Global Number in the AlphaCom)
  • Press Save
  • Press Reset/Restart


Activate Cisco Services

Navigation

Navigation -> Cisco Unified Serviceability

Service Activation
Tools -> Service Activation
Activate the following services:
  • Cisco CallManager
  • Cisco Tftp
  • Cisco IP Voice Media Streaming App
  • Press Save (takes some time)


Configure Cisco 7960 IP phone

Connect a network cable to the phone. In this example we connect to a network with a DHCP server.

Power up the phone (48VDC, center positive).

Click "settings" button (rightmost, below the "i" button).

Select 3 Network Configuration. Notice that many fields (DHCP server, IP etc) is already set up automatically by the DHCP server.

Note: In the Network Configuration menu, settings are locked by default. To be able to change them, you must press this sequence: * * #.

33 Erase configuration: Change to Yes.

Save. The phone will reset. Return to the Network Configuration menu.

32 Alternate TFTP: Yes.

8 TFTP server 1: 10.5.2.43. (IP address for Cisco CM server).

Save. The phone will reset.

The phone will now register with Cisco CallManager, download configuration and be ready for use. (This takes about 1-2 minutes, or longer if an automatic firmware update is performed).

AlphaCom Configuration

AlphaWeb Configuration

Assign IP address to the AlphaCom XE Ethernet Port(s)


Log on to AlphaWeb and enter a valid IP address on the Ethernet port. In the example to the right, Ethernet port 1 is used. Consult your network administrator to obtain the IP address.


Assign IP routing to the AlphaCom XE Ethernet Port(s)

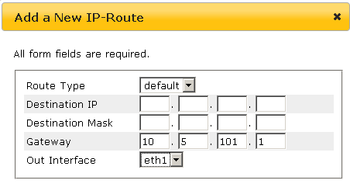

Log on to AlphaWeb and create a default routing. This is essential if the CUCM and AXE are on two different networks.

Insert SIP Trunk licenses


Log on to AlphaWeb and install the SIP Trunk License.

Firewall (filter) settings

  • Enable the SIP protocol (UDP port 5060) on the desired Ethernet port. It is by default enabled for Ethernet port 1.
  • Enable for VoIP audio (UDP port 61000 - 61150) on the desired Ethernet port. It is by default enabled for Ethernet port 1.


AlphaPro Configuration

Create a SIP Trunk Node


From the AlphaPro main menu, use the ‘+’ button next to the ‘Select Exchange’ dropdown list to create a new exchange. The exchange type must be set to ‘SIP Node’.

Set the parameters as shown in the figure to the right.
The SIP Trunk IP address must be identical to the IP address of the Cisco Call Manager.

Note: If the AlphaCom is configured with a SIP Registar node in addition to the SIP Trunk node, the SIP Registar node must have a lower node number than the SIP Trunk node.

Define the AlphaCom / SIP routing


In Exchange & System > Net Routing use the Insert button to create a route between the AlphaCom and Cisco Call Manager.
Set Preferred codec to G711u and RTP Packet Size to 20 ms.

Create access numbers

The Cisco phones can be accessed in three different ways:

  • Prefix number: Dial Prefix + Phone number. “Phone number” will be called
  • Integrated Prefix number: Dial Prefix + Phone number. The prefix will be included as a part of the called telephone number.
  • Global number: Dial the phone number without using prefix

Prefix number
The directory number must be programmed in the AlphaCom directory table with feature 81 and Node = SIP Trunk node number (100 in this example). In the field “Collect N more digits (SIP)” you must enter the maximum number of digits in a phone number.

When the prefix is dialed, the AlphaCom will wait for more digits. When the number of digits specified in the “Collect N more digits (SIP)” is collected, a call setup message is sent to the Cisco Call Manager. If fewer digits are entered, the AlphaCom will time out after 4 seconds, and the call setup message will be sent. You can also terminate the digit collection by pressing the M-key. The call setup message will then be sent immediately.

Configuration guide for Cisco Call Manager 4.1 - Prefix number.JPG

In the example to the right the directory number 0 is used as a prefix.
Dialing examples:

0 + 12345678: Telephone number 12345678 will be called
0 + 1234: After a 4 second timeout, telephone number 1234 will be called
0 + 1234 + M: Telephone number 1234 will be called


Integrated Prefix number
The directory number must be programmed in the AlphaCom directory table with feature 83 and Node = SIP Trunk node number (100 in this example). In the field “Collect N more digits (SIP)” you must enter the maximum number of digits in a phone number.

When the prefix is dialed, the AlphaCom will wait for further digits. When the number of digits specified in the “Collect N more digits (SIP)” is collected, a call setup message is sent to the Cisco Call Manager. If fewer digits are entered, the AlphaCom will time out after 4 seconds, and the call setup message will be sent. You can also terminate the digit collection by pressing the M-key. The call setup message will then be sent immediately.

Configuration guide for Cisco Call Manager 4.1 - Integrated Prefix number.JPG

In the example to the right the directory number 57 is used as a prefix.
Dialing examples:

57 + 12345678: Telephone number 5712345678 will be called
57 + 1234: After a 4 second timeout, telephone number 571234 will be called
57 + 1234 + M: Telephone number 571234 will be called


Global number
The directory number must be programmed in the AlphaCom directory table with feature 83 and Node = SIP Trunk node number (100 in this example). The field “Collect N more digits (SIP)” must be left blank.

When the global number is dialed, the AlphaCom will immediately send a call setup message to the Cisco Call Manager.

Configuration guide for Cisco Call Manager 4.1 - Global number.JPG

In the example to the right the directory number 12345678 is defined as a global number.
When dialing this number a call setup message is sent to the Cisco Call Manager, instructing it to call this phone number.

Update the exchange

Log on to the exchange and update the exchange by pressing the SendAll button. Reset the exchange when the transfer is finnished.


Verify the configuration

You should now be able to dial from an AlphaCom station to a Cisco IP station and from a Cisco IP station to an AlphaCom station.
