Configuration guide for IP Hotline (SIP)

IP Hotline

This article is applicable for IP Hotline Stations 1008070000 and 1008070010 used in SIP mode. The configuration is done via the web interface of the station. For general configuration and setup of IP stations, see:

• IP Station Configuration - SIP mode

Hotline Call

When lifting the handset, input 1 of the station is triggered.

• Select SIP Configuration > Direct Access Key Settings, and enter the call destination on Input 1:

Configuration for IP Hotline 1008070010 (Turbine based):

Lifting the handset will place a call to number 112

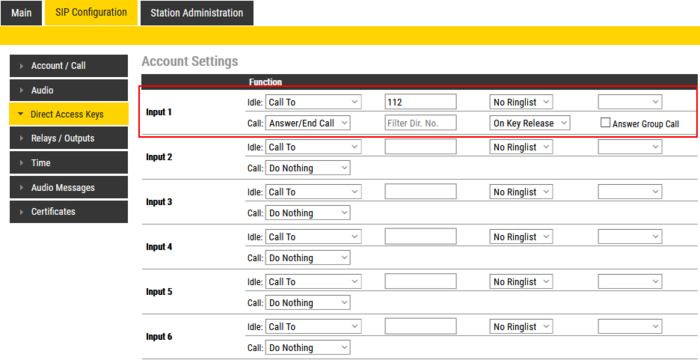

Image shown for IP Hotline Station 1008070010

Configuration for IP Hotline 1008070000 (Inca based):

Lifting the handset will place a call to number 112

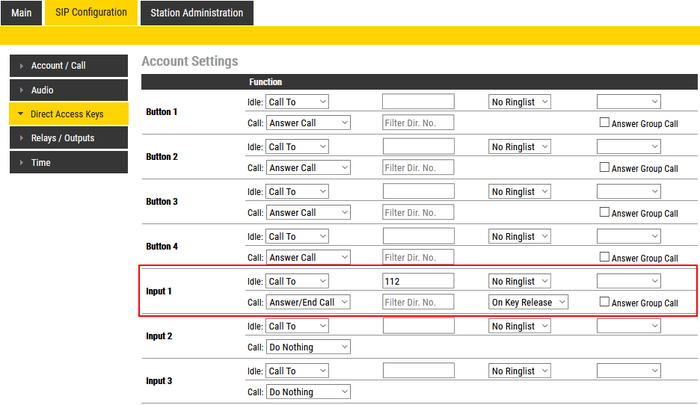

Image shown for IP Hotline Station 1008070000
