Configuring the V2000 in the SCT Tool

Before starting to configure the V2000 Mainframe, we need to assign it an AC Voltage range which will be dependant on the external power supply:

• Low Range: 100V-120V
• High Range: 220V-250V

You can also assign a Time Zone if desired.

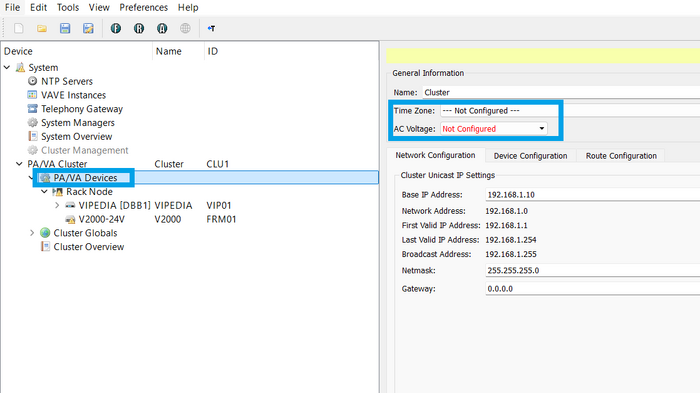

1. Click on PA/VA Devices

2. Click the drop down AC Voltage menu and set AC Voltage as required.

Populating the V2000's Slots Within the SCT

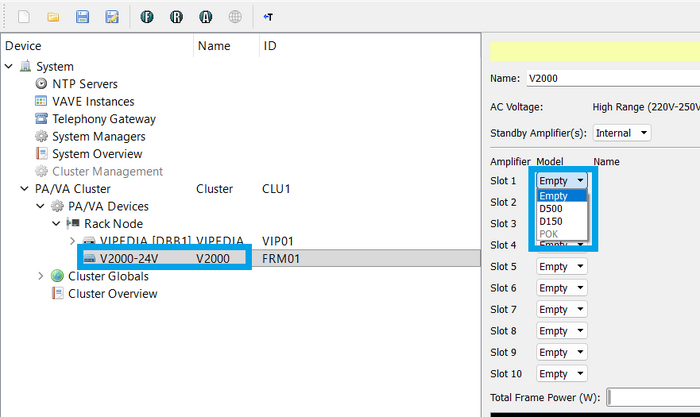

3. Next, you will need to populate the V2000 section of the SCT with the physical slots that contain any Amplifier Cards V2000 > Select the drop down menu next to the slot number:

Populating the V2000's Slots Within the SCT

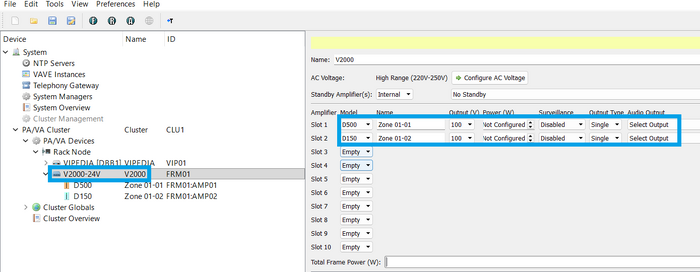

4. Configure the parameters relating to the slot:

Configuring the V2000's Slot Parameters

• Name: Corresponds to Zone naming.
• Output: Speaker line voltage. This can be 100v, 70v or 50v
• Power: Relates to the cumulative load of the loudspeaker tappings.
• Surveillance: Is the loudspeaker circuit surveillance monitoring method. Your options are: DC, Impedance and Loop
• Output Type: Each amplifier output on the V2000 has 2 circuits named A and B. Single utilises only the A or B circuit and Dual will utilise both A and B.
• Audio Output: Where you map an audio output to a specific zone.

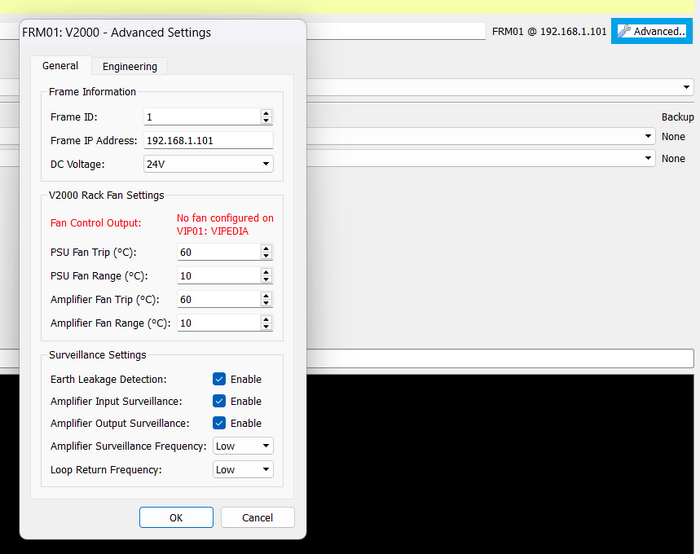

5. Configure the Advanced Settings by navigating to the "Advanced." Tab:

Select the ‘General’ Tab Enter the desired settings for ‘General Information

Default Settings:

Configuring the V2000's IP Address
