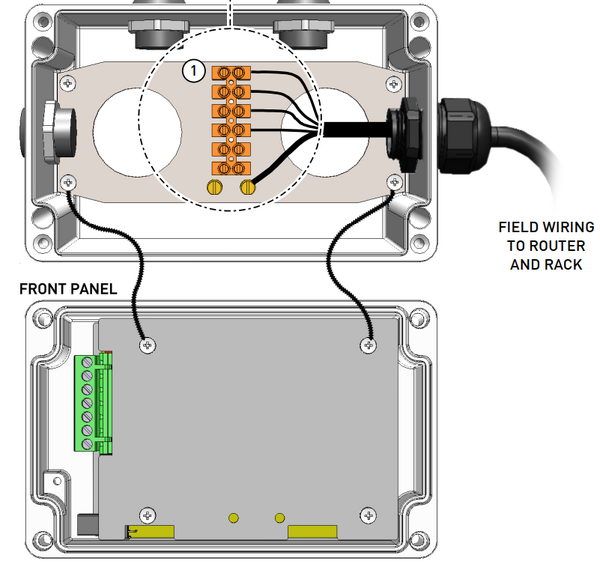

| DANS Terminal Connections |
| Terminal | Signal | I/O | Description | Connect |
| 1 | Audio+ | O/P | Balanced audio output (+VE) 0 dBu (nominal) / 66 Ω | To Router |
| 2 | Audio- | O/P | As above, but -VE | To Router |
| 3 | 0V Power | I/P | 0V supply from system | To power supply rack |
| 4 | +24V Power | I/P | +V supply(18V - 40V) | To power supply rack |
| Brass Terminals | - | - | Earth terminal | Cable screen |
