DC EOL Commissioning

Configuration within the System Configuration Tool

Please ensure you have read the DC EOL information page before attempting this commissioning section

1. Navigate to the V2000 section of the SCT tool and identify the slot, or slots, that feed the loudspeaker circuits your EOL 10k resistors are installed on. Each amplifier card occupies one numbered slot, and each slot is supervised independently, so commission one slot at a time and keep a record of which slot serves which zone.

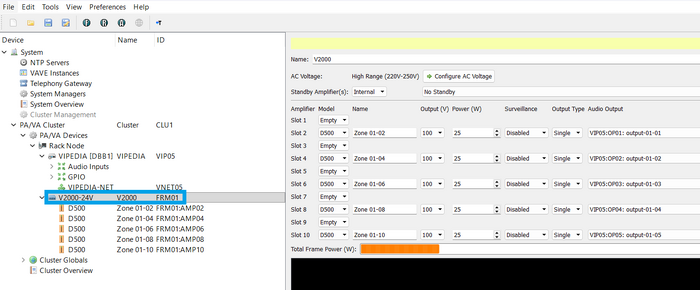

V2000 section in PAVA SCT

2. Select DC underneath Surveillance and Single or Dual as your Output Type (The output type depends on the system setup).

• The LSZDC caters for a single circuit with a maximum of ten EOL10K devices (and cable spurs).
• The LSDDC provides twin “A/B” type circuits with a maximum of five devices per circuit. Note that both circuits must have identical numbers of EOL10K devices.
  • Based on the information above, if there is a single A/B circuit populating the WAGO connector for a particular slot, the Output Type will be Single. If there are two sets of A/B circuits populating the WAGO connector for a particular slot, then the Output Type will be Dual

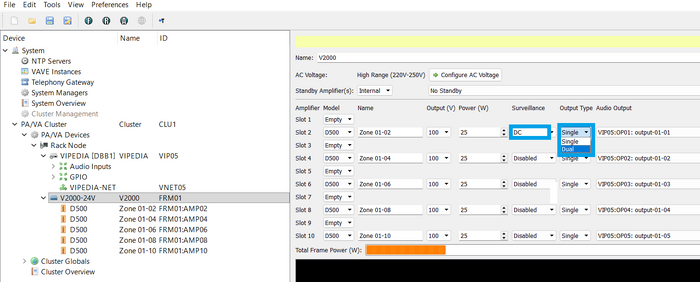

Setting the EOL Surveillance Type and Output Type

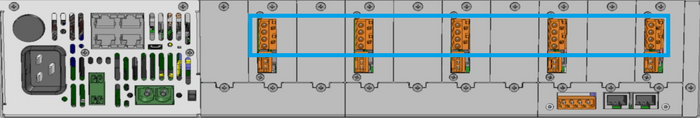

WAGO Connections on V2000

3. Save the configuration and Write it to the necessary nodes.

4. Navigate to the Amplifier Dynamic Tool, highlighted as an A icon at the top of the SCT. Ensure you have the correct V2000 selected and click Connect (You should see ADT LED change from red to green upon successful connection).

Before connecting with the ADT tool, ensure that within the SCT you navigate to Preferences > Network Connections > Ensure connection is set to the same network as the V2000 you are connecting to.

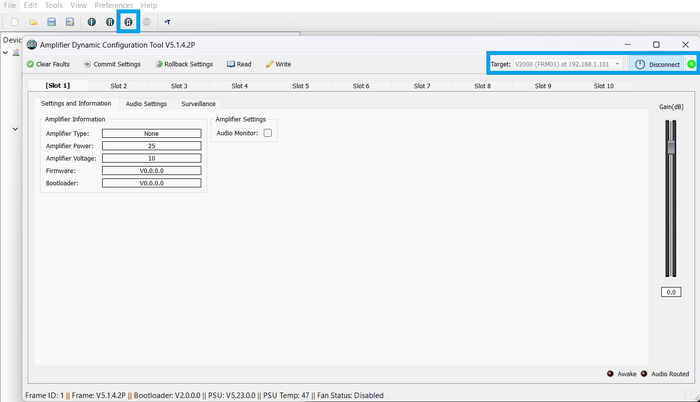

Successful Connection to the ADT

5. Navigate to the slot, or slots, containing the loudspeaker circuits with the EOL 10k resistors and click the Surveillance tab.

• Leave the Tone Generation settings as default.

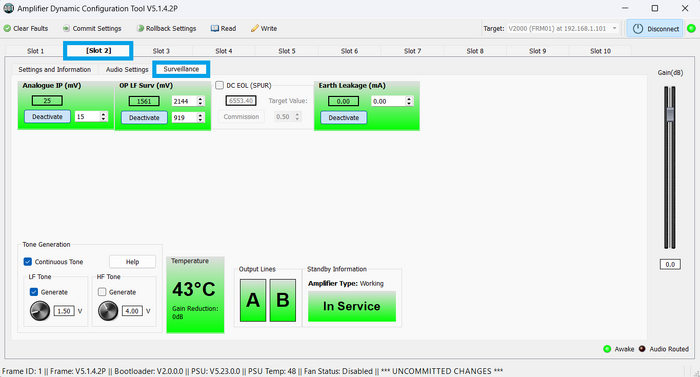

Navigating to the correct slot/slots and then the Surveillance tab

6. Set the Target Value to the number of 10k resistors you expect to see

7. Click the tick box in front of DC EOL (SPUR)

8. Once you see the correct number of 10k resistors in the dynamic window, click Commission and the entire box should turn green to indicate that no faults have arisen.

You may hear a relay operate inside the frame after clicking Commission, the box will turn orange, and the number of 10 kΩ resistors detected will drop for a few seconds. This is normal, the frame is monitoring the circuit and taking a new measurement for the resistance value, not reporting a line fault. Wait for the count to climb back to the expected number and the indication to settle. The box should also turn green again once the number of 10k resistors reaches the correct value.

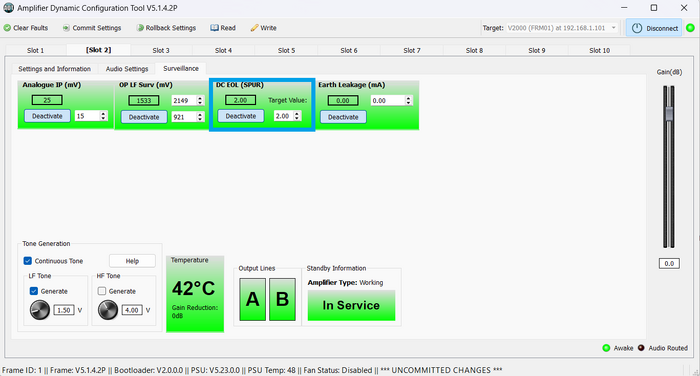

Successful commissioning of the 10k resistors present on the loudspeaker circuit. (I have included 2 EOL10k resistors in my example, with a Dual Output Type hence why the dynamic window states 2)

9. Once all of the above has been completed, remember to Commit Settings so they are saved.

Committing V2000 Commissioning settings to ensure they are saved
