Desk/Wall Master Station 100 7036 210


The Desk/Wall Master Station is an analog intercom station. It is connected to an ASLT line card in an AlphaCom XE7, AlphaCom XE20 or AlphaCom XE26 server using 2 pairs of wires.

Highlights

  • Combined wall and desk master station with full access to all features in Vingtor-Stentofon AlphaCom XE exchange
  • 10 programmable single touch keys with name tags
  • Selectable private / open mode

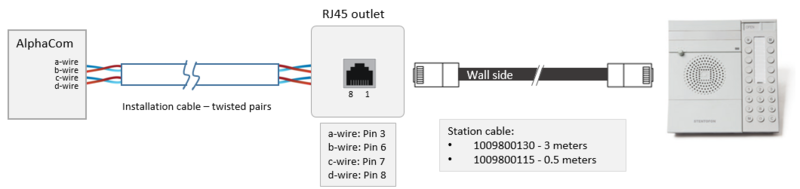

Wiring

The cabling from the AlphaCom server to the intercom station is star wiring. Two twisted pairs of wires are required. The maximum distance depends on the cable diameter:

  • 0.5 mm wires: 1.4 km
  • 0.6 mm wires: 2.0 km
  • 0.9 mm wires: 4.0 km


Note icon The station cable is not a 1:1 cable!


For details on connection at the AlphaCom server side, see ASLT - AlphaCom Subscriber Line Board


Dimensional Drawing

Front view Side view
