EMS01 (Emergency Microphone Station)

EMS (Emergency Microphone Station)
- A supervised emergency paging microphone designed for critical voice alarm and evacuation announcements. Integrated with Zenitel PAVA Audio Routers, the EMS provides a secure and reliable means of initiating emergency broadcasts, with continuous monitoring and fault reporting to maintain system integrity and ensure dependable operation during emergency situations.

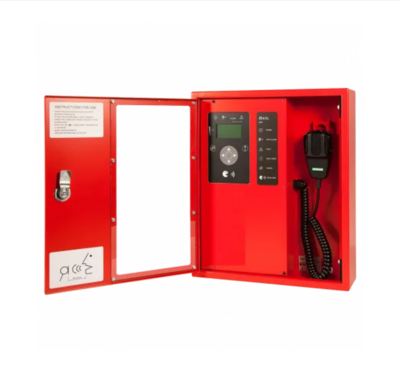

EMS01 Microphone

Key Features

The EMS fire microphone is designed for emergency applications and satisfies EN54 VACIE requirements.
Monitored fist microphone
Options providing 0, 10 or 20 physical selection buttons. The total number of physical buttons can be extended to 50 by use of a supplementary housing incorporating 30 additional physical buttons, which is available for mounting directly underneath the primary unit. All 50 button selections are also available via the GUI.
Hardware Bypass connections provided. This allows you to bypass the DSP in the event of it's failure.
IP connections (not EN-54 Certified)
AB mode and A/S mode operation.

(Please take note of the dates and download the latest manuals available)

These documents can be found on the Zenitel website by searching EMS01 and then going to the Documents section.
