Eagle Eye Cloud VMS

From Zenitel Wiki

SIP Icon 300px.png


Zenitel IP speakers can be connected to Eagle Eye using SIP and ONVIF discovery.

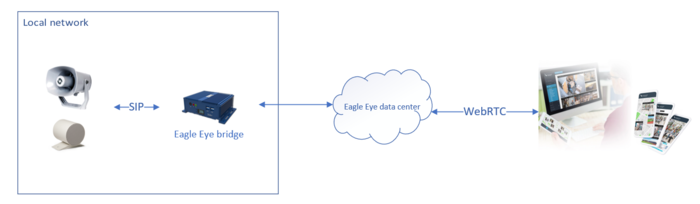

EEN integration overview.PNG
Integration overview


The integration works with Zenitel IP speakers configured in SIP mode with ONVIF enabled, and running software v. or later.


No licenses are required from Zenitel.

The integration is licensed from Eagle Eye. For further details, please contact Eagle Eye.


Start by configuring the Zenitel IP speakers before adding them to Eagle Eye Cloud VMS.

Configuration of Zenitel IP speakers

Log on to the station web.

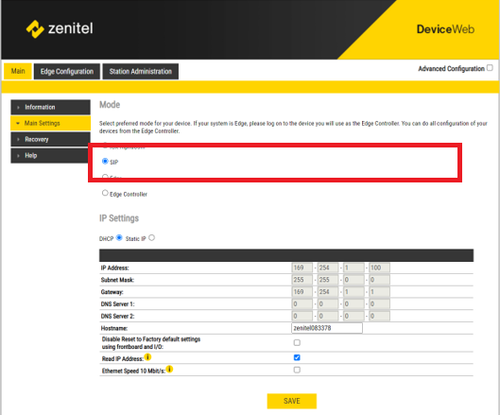

Go to Main Setting and change station mode to SIP:

Eagle Eye device config1.png
Setting station mode to SIP

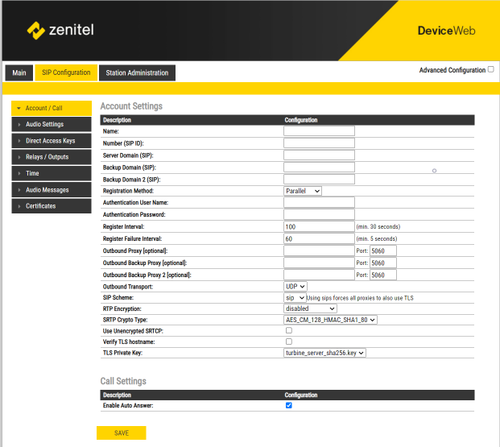

Go to SIP Configuration --> Account/Call and define a Name, Number (SIP ID) and "Authentification User Name" of your choice. This information will be used when you later on add IP Speakers to Eagle Eye Cloud VMS.

In the same tab change Conversation Mode from "Press to Talk" to "Duplex"

Eagle Eye device config3.png
SIP settings

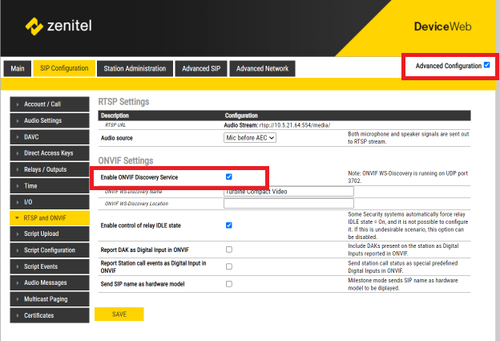

Go into Advanced Configuration --> SIP Configuration --> RTSP and Onvif, and make sure the ONVIF Discovery Service is enabled.

Eagle Eye device config2.png
Enabling ONVIF

Adding Zenitel IP speakers to Eagle Eye Cloud VMS

For guide on how to add Zenitel devices to Eagle Eye Cloud VMS and how-to-guides please visit the Eagle Eye Support page
