1-1a. Exchange startup (solution)

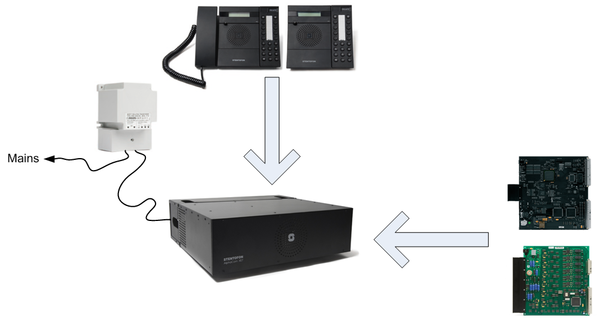

System configuration

Cards

• Insert the ASLT card in position 1.
• Insert the AMC-IP card in position 7.

Power

• Connect the power source to the plug on the back of the exchange, marked 24 VAC IN
• Connect the mains cable to the wall outlet
• Observe the exchange starting

Coldstart

• Press and hold the coldstart button on the AMC-IP board
• Press the reset button on the power card briefly
• Keep the cold start button pressed at least 2 sec. after reset
• The AMC status LED will blink green when the system is up and running

Station connection

• Connect the two master stations to physical port number 1 and 2
• Call the other station by dialling the directory number shown in the display

---
