Firewall (IP Stations)

From Zenitel Wiki


Zenitel IP Stations have an embedded firewall.

Note icon Advanced Configuration Mode must be enabled to access the Firewall on the Zenitel IP stations

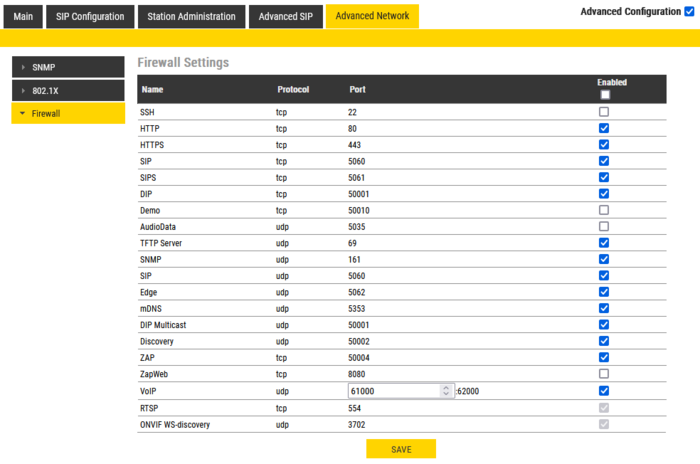

  • Select Advanced Network > Firewall:
Firewall Settings



Name Description Protocol Port Default
SSH TCP 22 OFF
HTTP TCP 80 ON
HTTPS TCP 443 ON
SIP TCP 5060 ON
SIPS TCP 5061 ON
DIP TCP 50001 ON
Demo TCP 50010 OFF
AudioData UDP 5035 OFF
TFTP Server UDP 69 ON
SNMP UDP 161 ON
SIP UDP 5060 ON
Edge UDP 5062 ON
mDNS UDP 5353 ON
DIP Multicast UDP 50001 ON
Discovery UDP 50002 ON
ZAP TCP 50004 ON
ZapWeb TCP 8080 OFF
VoIP UDP 61000-62000 ON
RTSP TCP 554 ON
ONVIF WS-discovery UDP 3702 ON
Note icon VoIP port range is configurable from firmware 2.7 (INCA) and 4.7 (Turbine) when the station is in SIP mode.
