Introduction
Using the ONVIF protocol, Zenitel video intercoms can be connected to HxGN dC3 Video (previously named Qognify VMS), enabling video and audio streaming, and event triggers. The Zenitel devices can run in any mode (SIP, EDGE, AlphaCom, Zenitel Connect Pro).
Compatibility
The integration has been verified by Hexagon to work with HxGN dC3 Video version 7.5 and later.
It is recommended that Zenitel devices run on firmware version 9.1.3.1 or later.
Supported devices
TCIV+ range.
TMIV+ range.
Main features
- Video streaming from Zenitel devices with resolution up to 1440 x 1080 and 30 FPS.
- Inbound and outbound audio streaming with audio codec G.711, which enables listen-in and push to talk in HxGN dC3 Video.
- 1 digital input, which enables call button push to register in the HxGN dC3 Video alarm manager (typically used to open video feed and start recording).
- 1 digital outputs, which enables output control from HxGN dC3 Video (Typically used to trigger relay on intercom to open door).
Licensing
A camera license is required from Hexagon for each Zenitel intercom that is connected to HxGN dC3 Video.
No license is required from Zenitel for the integration.
Configuration
Set-up and configuration of Zenitel devices
Ensure that ONVIF functions are enabled on the Zenitel devices prior to adding them to HxGN dC3 Video. The settings are available under Advanced Configuration - Advanced Video.

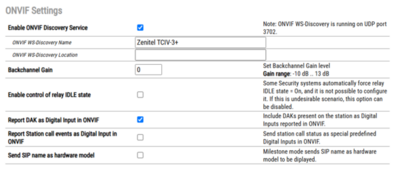

Recommended ONVIF settings:
 |
| Add devices |
- IMPORTANT: Uncheck Enable control of relay IDLE state, unless you specifically know how this override works in HxGN dC3 Video and what you are using it for. For example, if not unchecked, HxGN dC3 Video standard setting may cause the relay to be constantly activated, meaning door will be constantly unlocked in the Zenitel device.
- Enable ONVIF Discovery Service means that HxGN dC3 Video can search for and discover Zenitel devices on the local network.
Note: The ONVIF credentials for Zenitel devices are user/password admin/alphaadmin
- Report DAK as digital input in ONVIF means that call button push can be used in HxGN dC3 Video to create alarm, start recording, open video stream, etc
Set-up and configuration of HxGN dC3 Video
Configuration guides are available on the Hexagon partner portal (login required).
