IP 3-gang Substation Dimensions & Mounting Instructions
From Zenitel Wiki
Designed in stainless steel to withstand corrosion.
From HW version 1008051000.0102, stainless steel: A316L. (Earlier versions: A304.)
| Dimensions (WxHxD) | Weight | |
| IP Vandal Resistant Substation (3 gang) | 114 x 160 x 60 mm | 0.8 kg |

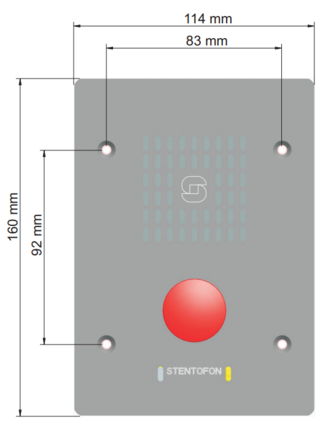

Dimensions
Flush Mounting

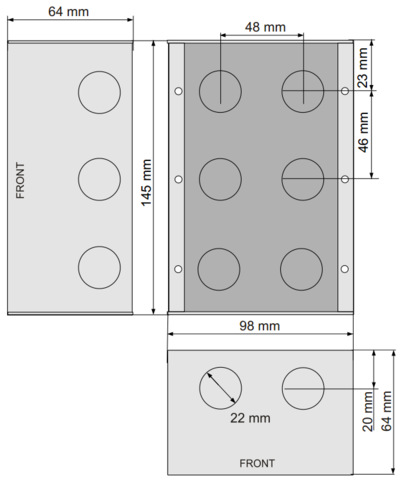

The IP Vandal Resistant Substation (part no.1008051000) is flush mounted in a 3 Gang backbox (part no. 1008098300).
