IP ARIO Dimensions & Mounting Instructions

From Zenitel Wiki

  Dimensions (WxHxD) Weight
IP-ARIO 210 x 44 x 240 mm 1.5 kg

The IP-ARIO comes with mounting brackets in the box for mounting in a 10" rack, or for wall mount.

Mounting in a 10" rack

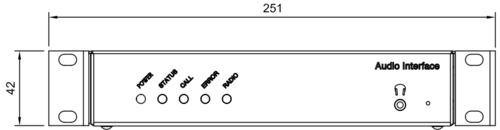

Brackets fitted for 10" rack mounting - Front view

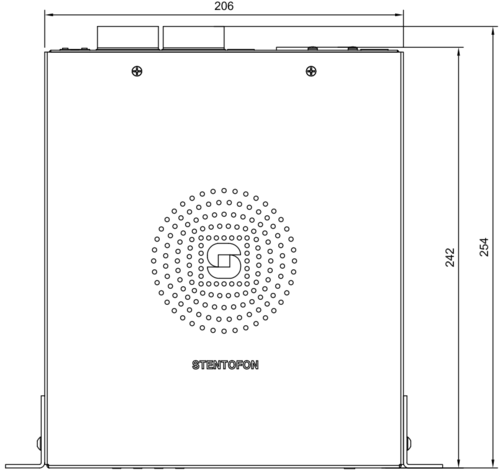

Brackets fitted for 10" rack mounting - Top view


Brackets fitted for 10" rack mounting - Side view

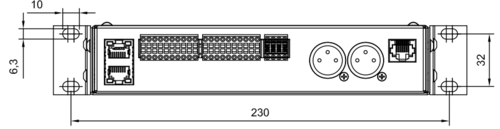

Brackets fitted for 10" rack mounting - Rear view


Mounting on wall

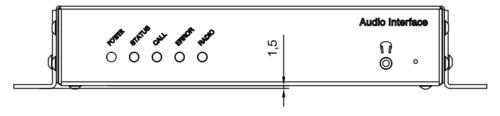

Brackets fitted for on-wall mounting - Front view

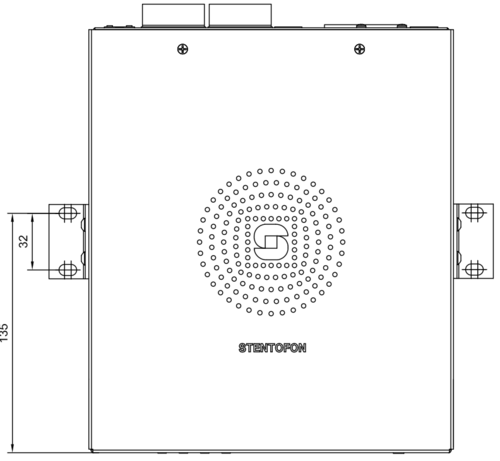

Brackets fitted for on-wall mounting - Top view


Brackets fitted for on-wall mounting - Side view


Brackets fitted for on-wall mounting - Rear view


Mounting in a 19" rack

For mounting in a 19" rack there are three alternatives:

1 - IP-ARIO on a shelf

Place the IP-ARIO(s) on a 19" rack shelf, item number: 2200002000.

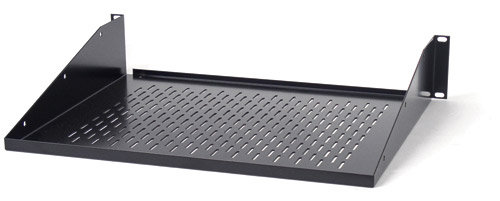

19" rack mount shelf, item number: 2200002000



2 - Two IP-ARIO's side-by-side

Mount two IP-ARIO's together side-by-side, and use the 10" inch rack mount brackets to fit them in a 19" rack.

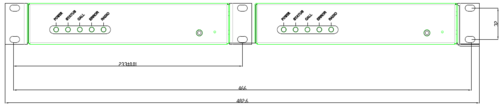

IP-ARIOS mounted together and fitted with brackets - Front View


3 - Single IP-ARIO in a 19" rack

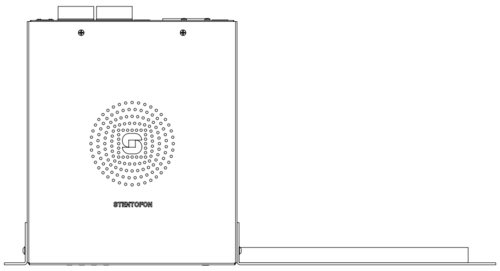

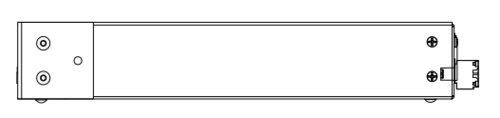

For a single IP-ARIO in a 19" rack an extra bracket can be fitted together with one of the accompanying brackets to fill the space four mounting in a 19" rack. The extra bracket has item number 2810011001.

Brackets fitted for 19" rack mount - Front view


Brackets fitted for 19" rack mount - Front view


Brackets fitted for 19" rack mount - Front view
