IP Desktop Master Station with Video Display - Configuration Guide

From Zenitel Wiki

Obsolete icon This product is discontinued!


This item is replaced by IP Desktop Station with Video Display - 1408001635

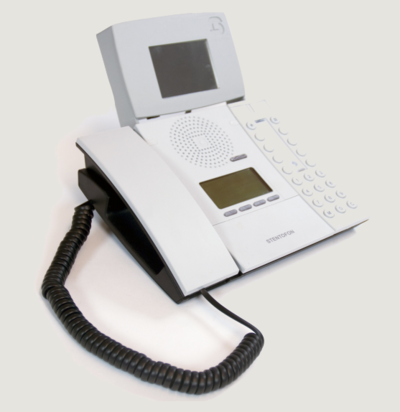

IP Desktop with Monitor.PNG

This article provides a detailed step-by step guide to the configuration and programming of the STENTOFON IP Desktop Master Station with Video Display used together with the IP Video Substation 1038051415.

This document should provide adequate information for setting up the station and getting it up and running.

Introduction

All the commands required to use the video display intercom will be described in this document. The following IP addresses will be used throughout the document:

  • Video Display on Master Station IP address = 192.168.1.24
  • Master Station IP address = 192.168.1.23
  • AlphaCom IP address = 192.168.1.5
  • Video Camera on Substation IP address = 192.168.1.12

The video display does not support an Ethernet cable from a PoE port. Power for the video display can only be obtained from an external power supply (available from Zenitel).

Technical personnel responsible for video display programming should have some working experience with STENTOFON software/interface such as AlphaPro and AlphaWeb.

Hardware Architecture


The intercom system architecture including video display is based on the following equipment:

  • AlphaCom server (XE1/XE20/XE26)
  • IP Master Station with video display (item no. 1038001535/1038000535)
  • IP Video Substation with video camera (item no. 1038051415)
  • IP Video Door Station with camera (item no. 1401110100)

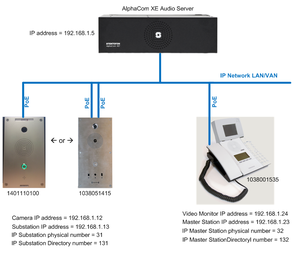

A simplified diagram of the system configuration is shown to the right:

Functional Architecture

When someone initiates a call from the substation with video camera, the AlphaCom server sends a request to the AXIS camera which broadcasts its video stream on the LAN/VLAN. The command is generated from two scripts programmed in AlphaCom (one script for video stream connection to the video display and one script to disable the video stream from the video display).

This video stream is recovered by the AlphaCom server which transcodes the stream to a 320 x 240 pixel format so that it can be displayed on the video display.

Prerequisites

Video Stream

The video stream is read from the video display on a web server specified by the AlphaCom server. Hence, there is no recommended size or duration for the source file. The image resolution must be 320x240 pixels. Other resolutions are not supported.

Recommendations:

  • File extension: mpg
  • Resolution : 320x240 pixels
  • Video Codec: MPEG-2 at 800 kbps

Powering Up the Video Display

The circuit board must be powered with an external 12 VDC, 1A power supply. No protection is provided on the board.

NOTE: Do not use a PoE switch port as a power source.

Video Display Settings

To set up the video display, the user must connect an Ethernet network cable to the master station. The user interface is accessible via a Telnet connection. The setup procedure is as described in the following sections.

Video Display Connection

Open the Command Prompt window on the PC by doing the following:

In Windows XP

1. Click Start > Run
2. Type cmd and press Enter

In Windows 7

1. Click Start
2. Type cmd and press Enter

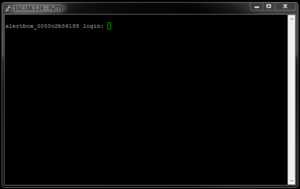

IP Desktop with Monitor 3.PNG

Run the following command:

telnet 192.168.1.24

or use Putty.

If the connection is successful, the image to the right is displayed:

Log in with the following user account settings:

  • Login: root
  • Password: aivonis

After logging in, you can start the configuration procedure.

Video Display Configuration

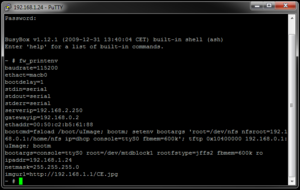

IP Desktop with Monitor 4.PNG

To display the video display configuration, run the following command:

fw_printenv

The configuration settings of the video display will be displayed like the image on the right:

The information related to the IP configuration of the video display is:

  • ipaddr - Video display IP address
  • gatewayip - Video display gateway IP address
  • ethaddr - Video display MAC address
  • imgurl - Address of the server where the standby image is located


Changing Video Display IP Configuration

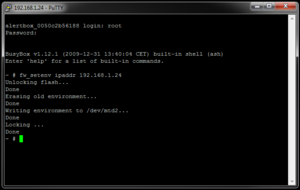

IP Desktop with Monitor 5.PNG

The variables described below are used for changing the IP configuration of the video display.

To change the IP address of the video display, you must change the value of the variable ipaddr e.g.:

fw_setenv ipaddr 192.168.1.24

The operation is completed when Done is displayed.

To change the video display gateway address, change the value of the variable gatewayip e.g.:

fw_setenv gatewayip 192.168.0.2

To change the net mask on the video display, change the value of the variable netmask e.g.:

fw_setenv netmask 255.255.255.0


Test Camera Video Stream

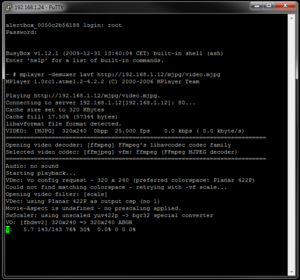

IP Desktop with Monitor 6.PNG

To ensure that the video display is able to receive a video stream from the network, the following command has to be run:

mplayer -demuxer lavf

The following is an example command to receive the stream from a video camera with IP address: 192.168.1.12:

mplayer -demuxer lavf http://192.168.1.12/mjpg/video.mjpg

The video stream should now be displayed on the video display on the master station.

The above window appears when you get a good reading from the stream of the video camera.

To stop the streaming, press CTRL + C.

Modify Standby Logo on Video Display

Prerequisites

IP Desktop with Monitor 7.PNG

Save the image/logo to be displayed under Scripts in AlphaWeb.

The new image/logo will be displayed when there is communication between the video display and the AlphaCom server. Otherwise, the default STENTOFON logo is displayed.

The image/logo must have the following features:

  • Image resolution: 380x240 pixels
  • Format: jpg


Image/Logo Update

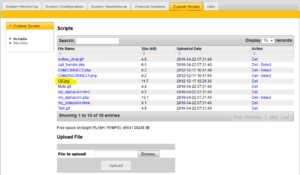

IP Desktop with Monitor 8.PNG

The image can be updated by using the variable imgurl available on the master station. This variable contains the address of the server where the image is saved (in this case, it is the IP address of the AlphaCom server).

To insert a new image:

  • Log into AlphaCom via AlphaWeb
  • Select the Custom Scripts tab and log in to your PC with the following access code:
- User name: scripter
- Password: alphascript
  • Click Browse and navigate to the folder where the image CE.jpg is located
  • Click Upload

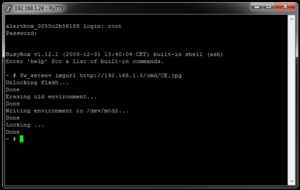

IP Desktop with Monitor 9.PNG

If you wish to confirm the image change, run the following command:

fw_setenv imgurl http://192.168.1.5/cmd/CE.jpg

192.168.1.5 is the address of the AlphaCom server that contains the registered logo/image CE.jpg.

The image modification will take effect after the video display is rebooted, when the new logo has been downloaded.

To reboot, run the following command:

reboot

The video display will then restart and the new logo will appear.

Video Camera Configuration

The master station video display supports only the AXIS Protocol. The video camera setup is carried out from the camera web interface.

IP Video Substation 1038051415

Camera Login:

Username: root
Password: zenitel

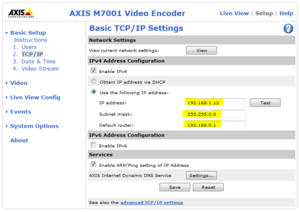

To assign the IP address of the video camera on the substation:

IP Desktop with Monitor 10.PNG
  • Select Setup > Basic Setup > TCP/IP
1. Select Use the following IP address and enter values in the fields for IP addresses
- in our example, the video camera has IP address 192.168.1.12
2. Validate by clicking Save

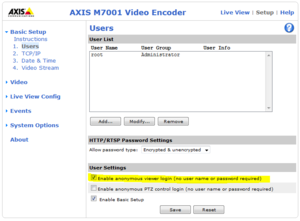

IP Desktop with Monitor 11.PNG
  • Select Setup > Basic Setup > Users
1. Check the box for Enable anonymous viewer login (no user name or password required)
2. Validate by clicking Save

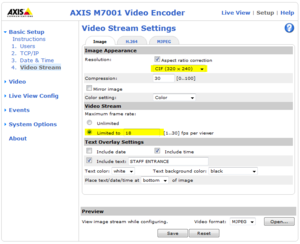

IP Desktop with Monitor 12.PNG
  • Select Setup > Basic Setup > Video Stream
1. For Resolution, select CIF (320x240) from the scroll-down box.
2. For Maximum Frame Rate, select Limited to, and set 18.
3. Validate by clicking Save

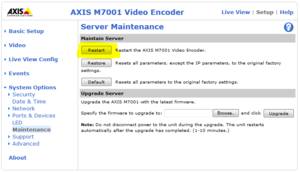

IP Desktop with Monitor 13.PNG
  • Select Setup > System Options > Maintenance
  • Click Restart


IP Video Door Station 1401110100

Please see article IP Video Door Station for details.

AlphaCom Server Settings

The AlphaCom system is configured using the AlphaPro programming tool and the AlphaWeb interface through the AlphaCom server.

AlphaWeb

Log into the AlphaCom server via AlphaWeb on a browser.

The AlphaCom server will be connected to the video display via a TCP/IP link through the Ethernet network. The AlphaWeb interface will allow Ethernet ports eth0 and eth1 to be configured.

IP Network Configuration

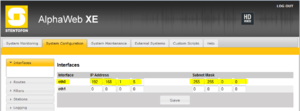

IP Desktop with Monitor 14.PNG

To set the IP address and AlphaCom subnet mask:

  • Select the System Configuration tab
  • Select Interfaces and enter values in the fields as indicated below
- in our example, the port eth0 is connected using TCP/IP and the AlphaCom IP address is 192.168.1.5 with subnet mask 255.255.0.0

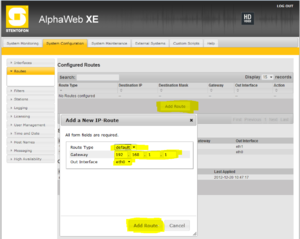

IP Desktop with Monitor 15.PNG

To set the Gateway IP Address (if required):

  • Select the System Configuration tab
  • Select Routes and click Add Route
  • Enter values in the Gateway field as indicated below
- in our example, the router gateway IP address is 192.168.1.1


The video stream control is obtained through URL commands via http.

The http port must be enabled on the Ethernet port connected to the video display (in this example, port Eth0).

IP Desktop with Monitor 16.PNG

To enable the http port:

  • Select the System Configuration tab
  • Select Filters and check the box under Eth0 for HTTP


Scripts Inserts

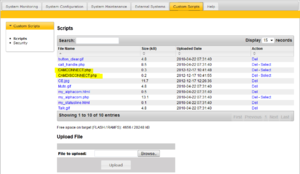

IP Desktop with Monitor 17.PNG

The command to enable and disable the video stream from the camera to the video display is carried out with two scripts:

  • Connect the video stream with the script CAMCONNECT.php
  • Disconnect the video stream with the script CAMDISCONNECT.php

These scripts can be downloaded from the Downloads section.

To insert scripts:

  • Select the Custom Scripts tab and enter:
- User name: scripter
- Password: alphascript

To upload a script file:

  • Click Browse and navigate to the folder where the script files CAMCONNECT.php and CAMDISCONNECT.php are located
  • Click Upload for each script file


AlphaPro

The activation of a video stream to a video display is created through an IP connection from an event selected via AlphaPro.

Video Display IP Link Configuration

the


The communication between the AlphaCom server and the video display is created through a TCP/IP link.

  • Click the Exchange & System icon
  • Click Serial Ports
  • Highlight an EDIO port
- in our example, the port EDIO 1
  • Enter values in the fields as shown to the right:


Events Programming

A video stream can be activated with any type of event in the list via AlphaPro.

To enable a video stream to a monitor, you should use the following event:

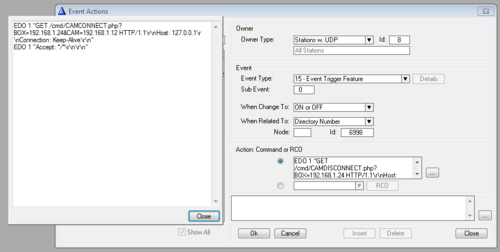

Event to activate video stream


Action command details:

EDO 1 "GET /cmd/CAMCONNECT.php?BOX=192.168.1.24&CAM=192.168.1.12 HTTP/1.1\r\nHost: 127.0.0.1\r\nConnection: Keep-Alive\r\n"
EDO 1 "Accept: */*\r\n\r\n"

where:

BOX is followed by the IP address of the video display
CAM is followed by the IP address of the video camera

In our example, Directory Number 6998 will enable the video stream of the camera at IP address 192.168.1.12 to video display at IP address 192.168.1.24.


If you want to disable the video stream on the video display, the following event must be used:

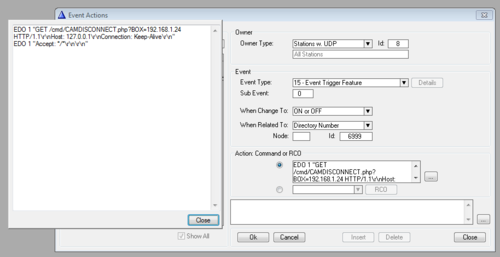

Event to deactivate video stream


Action command details:

EDO 1 "GET /cmd/CAMDISCONNECT.php?BOX=192.168.1.24 HTTP/1.1\r\nHost: 127.0.0.1\r\nConnection: Keep-Alive\r\n"
EDO 1 "Accept: */*\r\n\r\n"

where:

BOX is followed by the IP address of the video display.

In our example, the Directory Number 6999 will disable the video stream of the video display at IP address 192.168.1.24.


NOTE! Make sure there is no line shifts in the commands.
