IP Substation Dimensions & Mounting Instructions

From Zenitel Wiki

Designed in stainless steel to withstand corrosion.

 From HW version 1008041100.0401, stainless steel: A316L. (Earlier versions: A304.)
  Dimensions (WxHxD) Weight
IP Vandal Resistant Substation 92 x 180 x 46 mm 0.8 kg

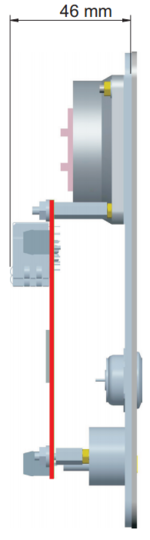

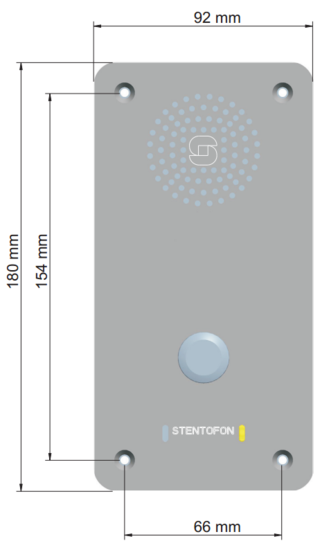

IP Substation Dimensions - Front view IP Substation Dimensions - Side view

Flush Mounting

The IP Vandal Resistant Substation (part no. 1008041100) can be mounted in a flush mount backbox (part no. 1008098100) or a surface mount backbox (part no. 1008098000).

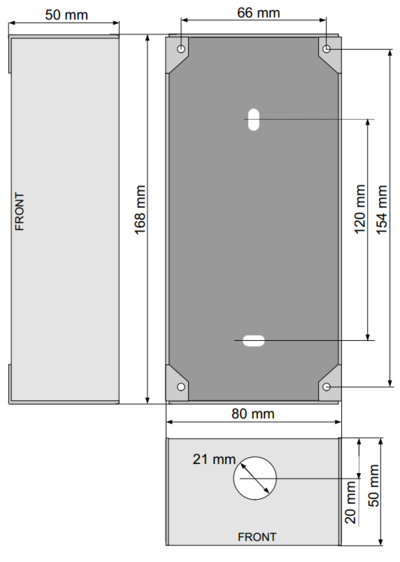

IP Substation - Flush Mount Backbox

Surface Mounting

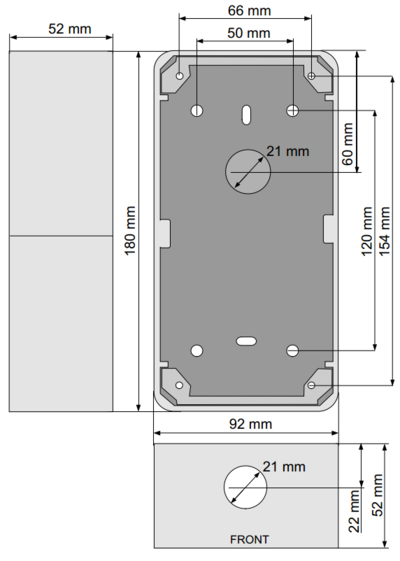

IP Substation - Surface Mount Backbox
