ITS-1 Installation
From Zenitel Wiki
The ITS-1 can be mounted on the wall, the glass, or on the desktop using a 20° bracket.
On-Wall 0° Mount

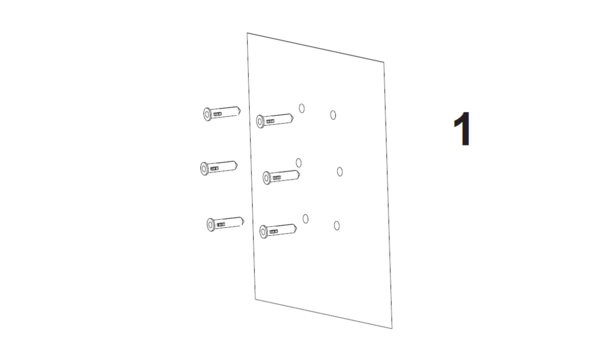

1. Drill six holes on the wall referring to the positions of the ones on the 0° installation bracket, then put the screw anchors on the position of the holes.

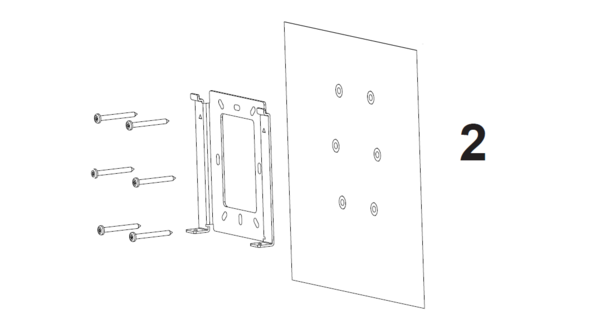

2. Fix the 0° installation bracket on the wall by the self-tapping screws on the positions defined.

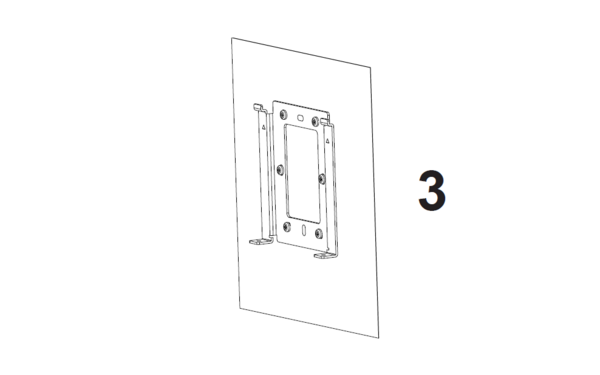

3. Make sure the 0° installation bracket is installed properly as shown in the illustration.

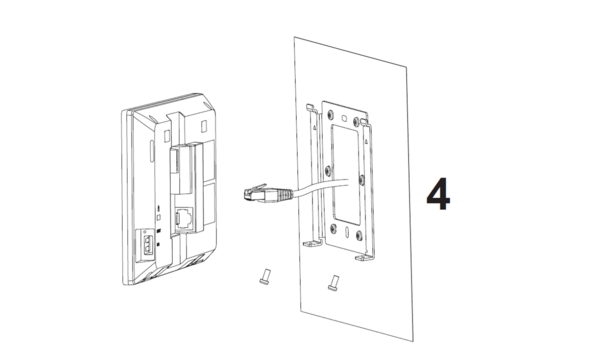

4. Plug in the cables to the proper ITS-1 ports on the back, and fix the 0° installation bracket with the ITS-1 device using the two fixation screws from the bottom of the device.

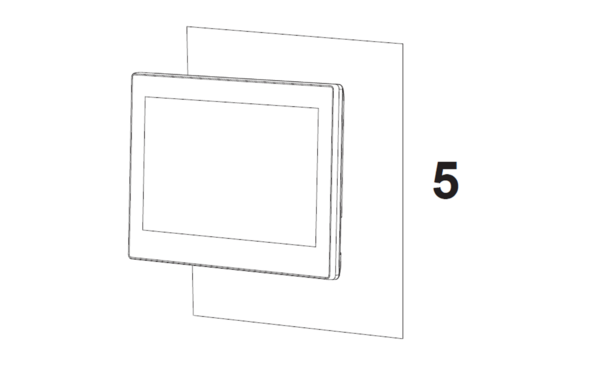

5. Align the position slots on device’s back with their correct placement on the metal bracket, then fix it by pushing down.
On-Wall 20° Mount

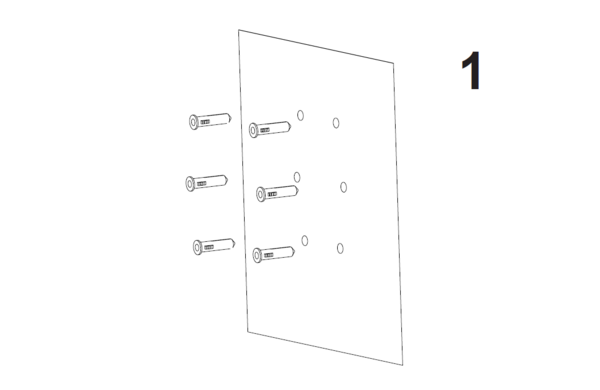

1. Drill six holes on the wall referring to the positions of the ones on the 20° installation bracket, then put the screw anchors on the position of the holes.

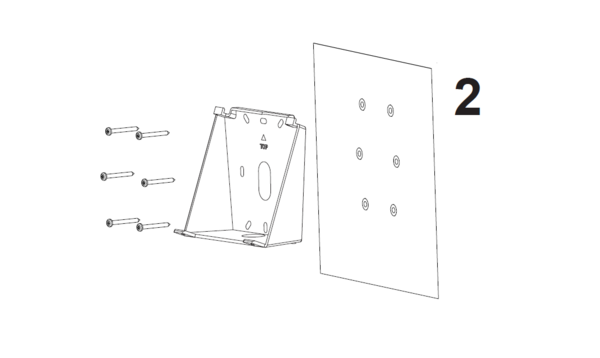

2. Fix the 20° installation bracket on the wall by the self-tapping screws on the positions defined.

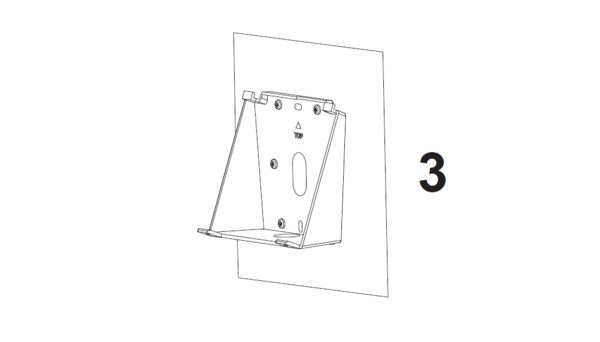

3. Make sure the 20° installation bracket is installed properly as shown in the illustration.

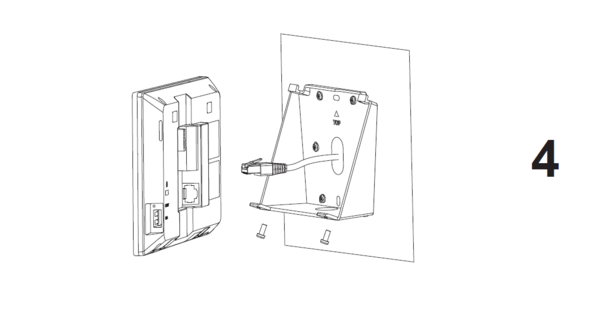

4. Plug in the cables to the proper ITS-1 ports on the back, and fix the 20° installation bracket with the ITS-1 device using the two fixation screws from the bottom of the device.

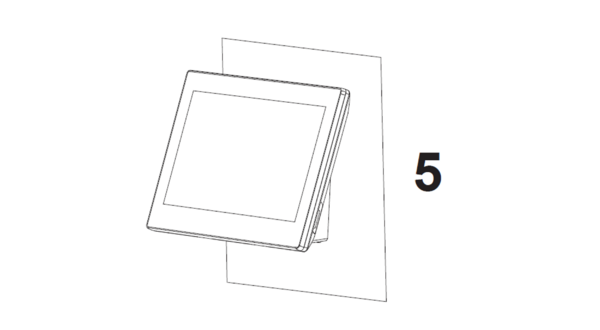

5. Align the position slots on device’s back with their correct placement on the 20° installation bracket, then fix it by pushing down.
On-Wall Glass Adhesive Mount

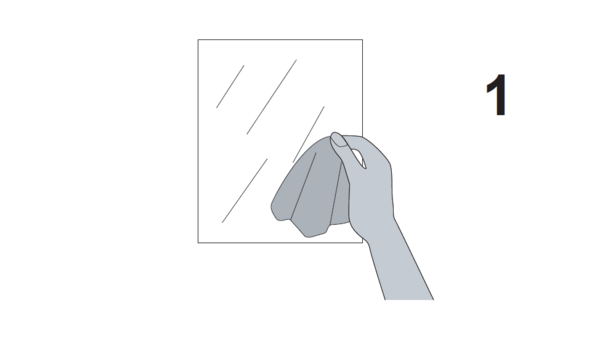

1. Clean the glass before installation.

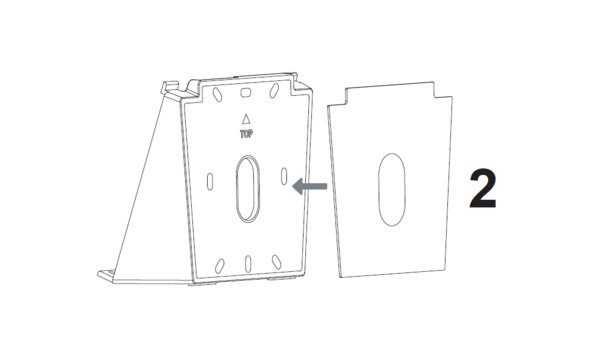

2. Stick the Glass Adhesive tape to the 20° installation bracket.

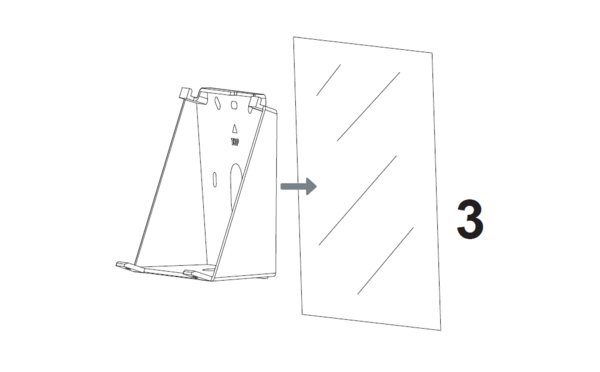

3. Install the 20° installation bracket with its glass adhesive tape on the glass.

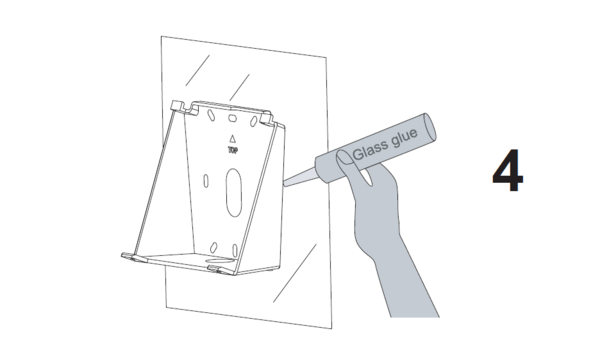

4. After installing with double-sided adhesive, please use additional adhesive to fix the equipment.

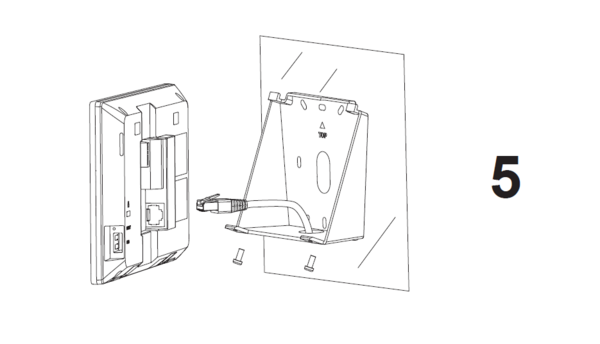

5. Plug in the cables to the proper ITS-1 ports, and fix the 20° installation bracket with the ITS-1 device using the two fixation screws.

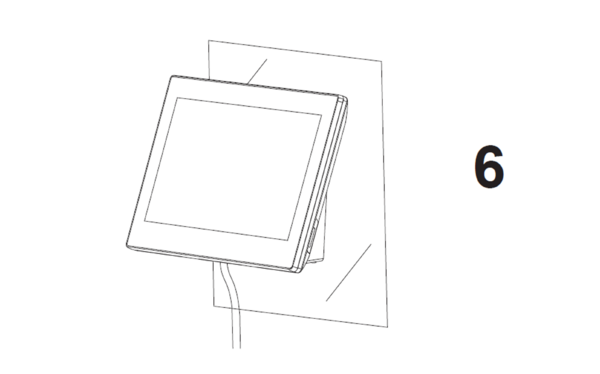

6. Align the position slots on device’s back with their correct placement on the 20° installation bracket, then fix it by pushing down.
Connections
| Jack | Port | Function | Remark | |
|---|---|---|---|---|
| Pin | Signal | |||
| J1 | 1 | IN8- | Alarm IN8 (Active) | Isolation type alarm input, used for voltage signal detection, IN+ connected to positive signal output of sensor, IN- connected to negative signal output of sensor or GND of sensor. The active voltage range is 9-15V. |
| 2 | IN8+ | |||
| 3 | IN7- | Alarm IN7 (Active) | ||
| 4 | IN7+ | |||
| 5 | GND | Power Supply | DC12V recommend, input voltage rang 11-13V, current at least 1.5A@12V. | |
| 6 | +12V | |||
| J2 | 1 | NO1 | Alarm OUT1 | Relay output, normal open or close, max 125VAC/0.5A or max 30VDC/2A. |
| 2 | COM1 | |||
| 3 | NC1 | |||
| 4 | NO2 | Alarm OUT2 | ||
| 5 | COM2 | |||
| 6 | NC2 | |||
| 7 | GND | Alarm GND | Voltage reference for IN(1/2/3/4/5/6). | |
| 8 | IN1 | Alarm IN1 (Passive) | Alarm input, used to connect devices such as buttons/switches/alarm sensors. | |
| 9 | IN2 | Alarm IN2 (Passive) | ||
| 10 | IN3 | Alarm IN3 (Passive) | ||
| 11 | IN4 | Alarm IN4 (Passive) | ||
| 12 | IN5 | Alarm IN5 (Passive) | ||
| 13 | IN6 | Alarm IN6 (Passive) | ||
| J3 | Micro-SD Port | Data Storage | Support microSD / SDHC / SDXC, up to 512GB. | |
| J4 | Network Port (PoE) | Ethernet and PoE Supply | Single 10/100Mbps network port, support 802.3af PoE power supply. | |
| J5 | USB Port | Data Exchange | The USB port can be connected to USB disk (up to 2TB) / mouse / keyboard. The default current limit is 460mA, and user can configure it to 1000mA through the web. | |
