LED control (VS-Operator)

From Zenitel Wiki


This article shows how to configure the "LEDs" in the Button Matrix in VS-Operator. By this configuration the LED behavior will be flashing Red at Call Request, and steady green during Conversation.

Configuration is required in the VS-Operator Client only. No configuration is required in AlphaCom.

Configure DAK buttons

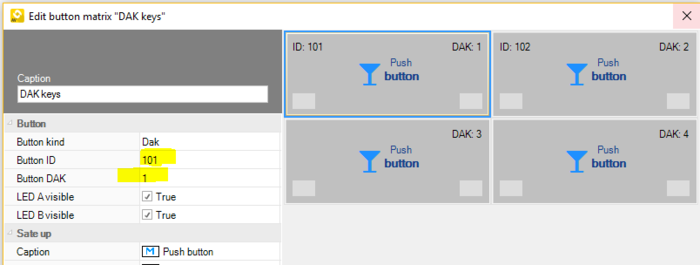

In the Button matrixes menu, define the button like this:

  • Button kind = DAK
  • Button ID = The directory number programmed on the actual DAK key in AlphaCom
  • Button DAK = the DAK key number (1-100)
DAK Matrix LED.png
Configuring buttons as DAK keys


Define Filter Sets

Define a Filter Set called "OperatorFilter"

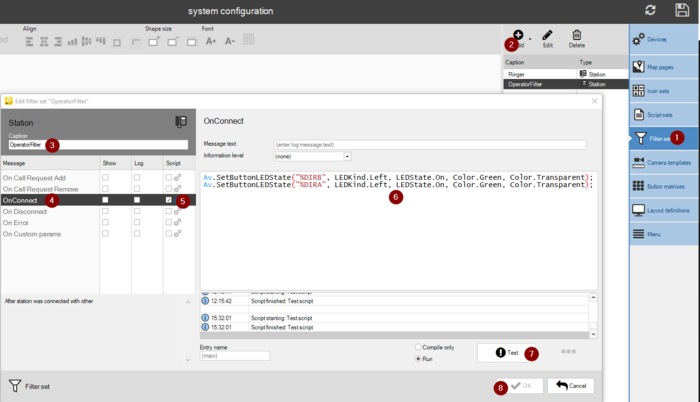

  • In VS-Operator, System Configuration, select Filter sets (1) > Add (2) > Station, and enter the name OperatorFilter (3).
  • Select On Connect (4), and check "Script" (5).
  • Add the following script (6):
App.SetButtonLEDState("%DIRB", LEDKind.Left, LEDState.On, Color.Green, Color.Transparent);
App.SetButtonLEDState("%DIRA", LEDKind.Left, LEDState.On, Color.Green, Color.Transparent);


  • Select Test (7), then OK (8) to save. (Note that if pressing "OK" without having done "Test" first, the script will not be saved!).
AV OperatorFilter.png
Creating the "OperatorFilter" - OnConnect script

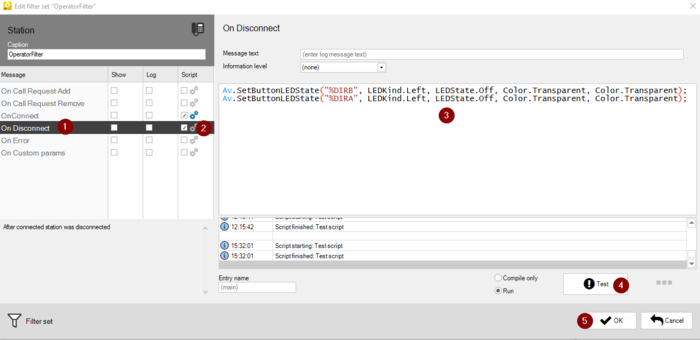

  • Select On Disconnect (1), and check "Script" (2).
  • Add the following script (3):
App.SetButtonLEDState("%DIRB", LEDKind.Left, LEDState.Off, Color.Transparent, Color.Transparent);
App.SetButtonLEDState("%DIRA", LEDKind.Left, LEDState.Off, Color.Transparent, Color.Transparent);


  • Select Test (4), then OK (5) to save. (Note that if pressing "OK" without having done "Test" first, the script will not be saved!).
AV OperatorFilterDisconn.png
Creating the "OperatorFilter" - OnDisconnect script


Define a Filter Set called "RemoteFilter"

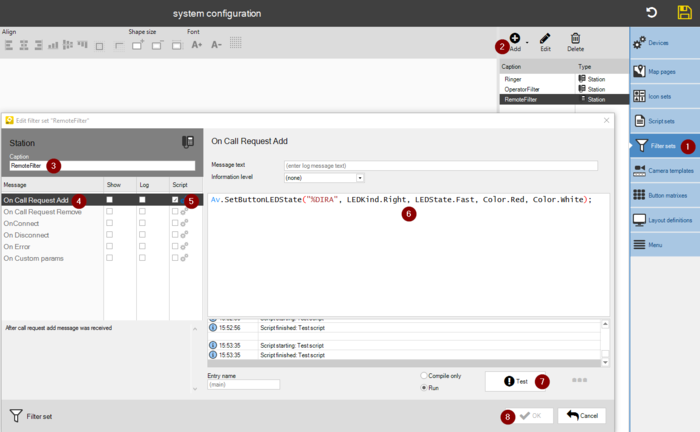

  • In VS-Operator, System Configuration, select Filter sets (1) > Add (2) > Station, and enter the name RemoteFilter (3).
  • Select On Call Request Add (4), and check "Script" (5).
  • Add the following script (6):
App.SetButtonLEDState("%DIRA", LEDKind.Right, LEDState.Fast, Color.Red, Color.White);


  • Select Test (7), then OK (8) to save. (Note that if pressing "OK" without having done "Test" first, the script will not be saved!).
AV RemoteFilterCRAdd.png
Creating the "RemoteFilter" - On Call Request Add script

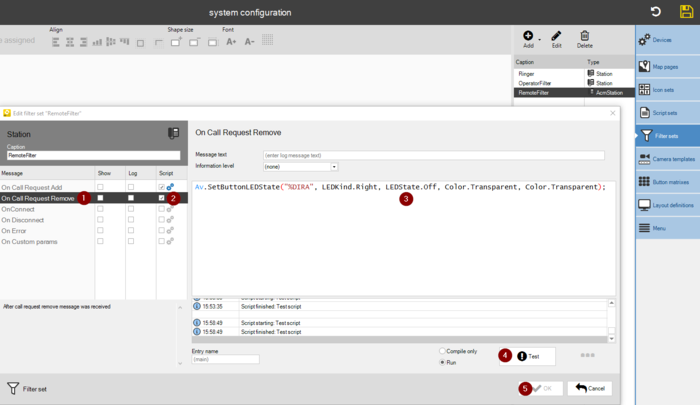

  • Select On Call Request Remove (1), and check "Script" (2).
  • Add the following script (3):
App.SetButtonLEDState("%DIRA", LEDKind.Right, LEDState.Off, Color.Transparent, Color.Transparent);


  • Select Test (4), then OK (5) to save. (Note that if pressing "OK" without having done "Test" first, the script will not be saved!).
AV RemoteFilterCRRemove.png
Creating the "RemoteFilter" - On Call Request Remove script

Assign the Filter Set to stations

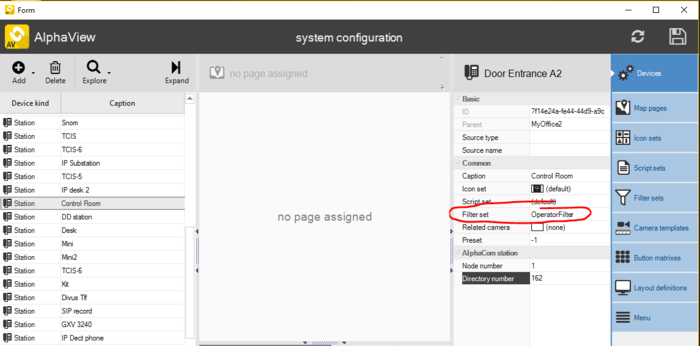

Select the Devices menu, select the VS-Operator associated station, and assign it to "OperatorFilter".

AV AddFilterOp.png
Assign the Operator station to the "OperatorFilter"

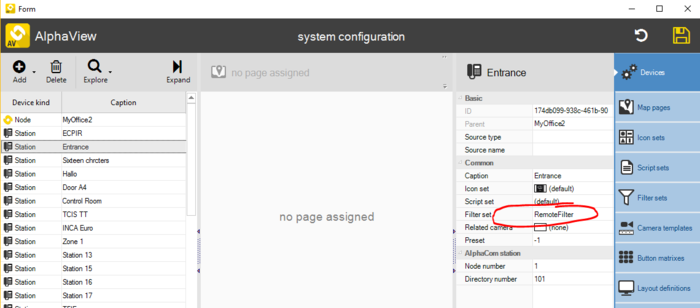

Select the Devices menu, select the calling substation, and assign it to "RemoteFilter".

AV AddFilterSub.png
Assign the substation to the "RemoteFilter"


Now there should be RED flashing LED at Call Request, and steady green during conversation.
