Loading DVA's Onto the Vipedia-12

The DVA load function from the VIPEDIA-12 DCT will either clear all DVAs and load the required number of DVA messages or add new DVAs into the selected VIPEDIA-12 unit.
Loading DVA into multiple units simultaneously may cause connection errors.
Not all 68 DVAs need to be present on the Micro-SD card.
The DVA load function from a terminal program gives more options for loading DVAs
The VIPEDIA-12/INTEGRA is supplied fitted with a Micro-SD card.
The DVA message files must be in the root directory of the Micro-SD card.

You Will Need

The required DVA message files:

48 kHz, 24 kHz or 12 kHz 16 bit mono WAV files with total duration of up to:
- 10 minutes at 48 kHz
- 20 minutes at 24 kHz
- 40 minutes at 12 kHz

1.Ensure all DVA messages have the correct format (see above) and that the total audio length does not exceed 10 minutes.

2. For the required VIPEDIA-12 in the system:

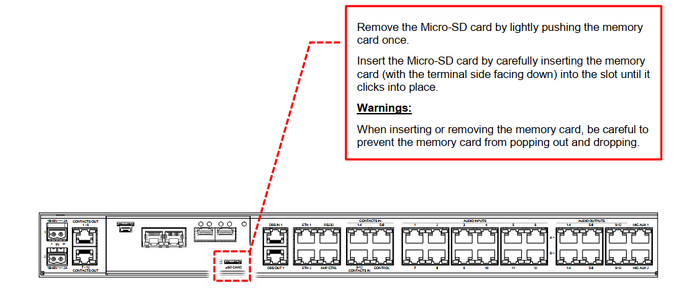

a. Remove the unit’s Micro-SD card located on the rear panel of the Router as shown below.

DVA SD Card Slot Location

b. Copy the required DVA message files (including any custom chime) to the root directory of the Micro-SD card.

c. Re-insert the Micro-SD card into the unit as shown above.

- Rebooting the unit is not required – The Micro-SD card will automatically be remounted at the start of the DVA loading operation.

3. Select the required VIPEDIA-12 from the drop-down list on the bottom-left corner of the VIPEDIA-12 DCT and then click the Load Unit DVA button

Opening the Load Unit DVA Icon

4. A confirmation dialog box will be displayed.

Erase All: if installing DVAs for the first time or if replacing all existing DVAs. All required DVAs must be on the Micro-SD card.
Do not Erase All: if adding new DVAs. Only new DVAs are required on the Micro-SD card

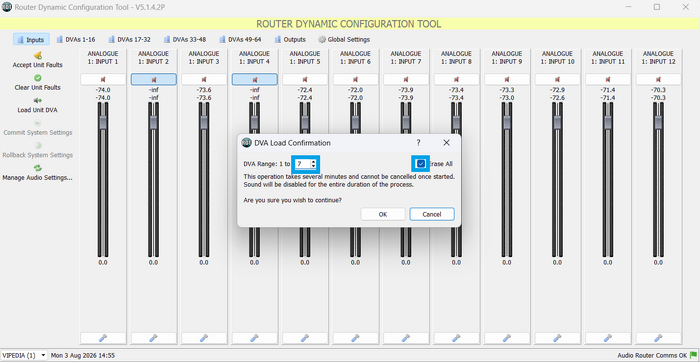

Selecting DVA Slots to be Loaded to

The erase option erases the DVAs on the target unit. It does not erase the DVA files on the MicroSD card.
If existing DVAs are erased, chimes are always generated at the end of the DVA loading operation:
- Standard chimes (Chime 1 to Chime 3) are automatically generated if custom chime files are not present on the Micro-SD card as follows:

-DVA_65.wav replaces the standard single-note chime

-DVA_66.wav replaces the standard two-note descending overlapping pattern chime

-DVA_67.wav replaces the standard three-note descending overlapping pattern chime

Custom Chime 4 is generated from DVA_68.wav chime file. If DVA_68.wav file is not present on the Micro-SD card, Chime 4 will not automatically be generated.

5. Enter the number of the last DVA to be loaded.

6. Select whether existing DVAs are to be erased.

7. Press OK to start the DVA loading operation.

The DVA loading operation takes several minutes and cannot be cancelled once started. It takes about 30 minutes to load 68 DVA files (approx. 10 minutes of audio).
Do not perform any operation on a unit that is loading DVAs

8. Repeat the above steps for other VIPEDIA-12 units as required.

9. The DVA Load dialog box will display a tab for each unit, and each tab will show the DVA loading progress for that unit.

The DVA loading progress is also displayed on the VIPEDIA-12 front panel.

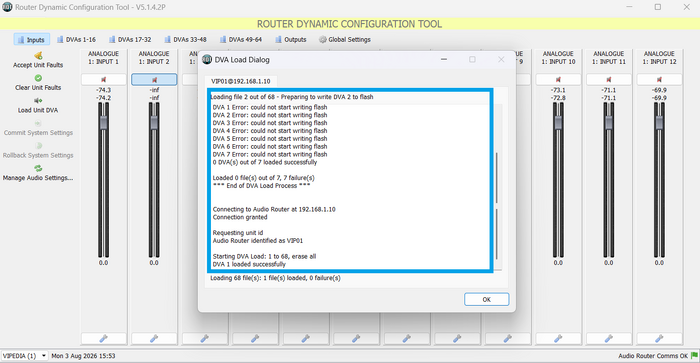

DVA's Being Written to Vipedia-12

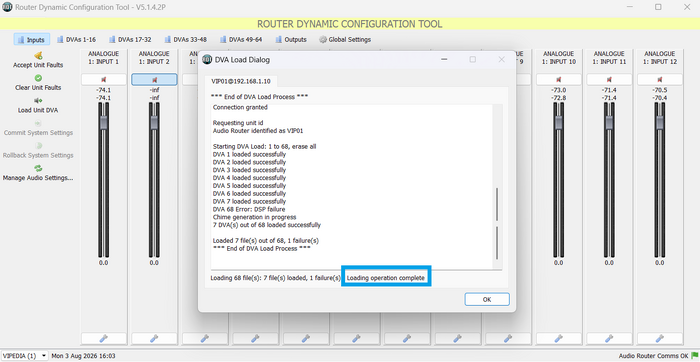

10. Once complete, you should see a message at the bottom of the dialog box stating "Loading operation complete".

DVA Loading Complete

11. Check the DVA's have are legible by going to:
