Logs (Zenitel Connect Pro)

Log Types

Zenitel Connect Pro (ZCP) provides four different log types:

• Debug Log: Covers a large section of different debug messages meant for developers.
• System Log: Provides log events for monitoring the health of the ZCP system. The log includes system startup and shutdown, container startup and shutdown, tone and button tests, licenses ok or failed, device status, SIP trunk status and WAMP session status.
• Call Log: Information about calls in the system
• Audit Log: Reports Generate token denied, Refresh token denied, Generate token, Refresh token.

Logs can either be stored locally in the Zenitel Connect Pro file system, or sent to a remote Syslog server. The log format is according to RFC-5424.

To configure and download logs, select the tile Applications > Logs.

Logging to Local Filesystem

Logging to the Local File System is by default disabled. To enabled logging change the relevant log type to "Log Level" = All.

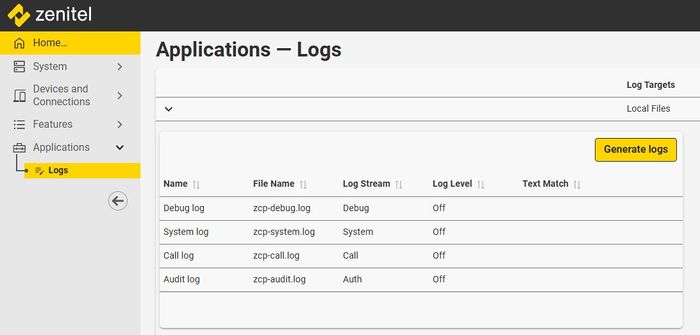

Logging to Local File System

• Log Level: In syslog, log levels are categorized into eight severity levels, ranging from the most critical (0 - Emergency) to the least critical (7 - Debug). Set "Log Level" = All to log all log events.
• Text Match: To filter on a specific text in the log strings, add the required text in the Text Match field. Only log events that contain this text will be sent to the log.

A Log Rotation mechanism prevents the logs from growing out of control. Once a day there is a check if a single log file has exceeded 200kB, or if the total amount of log files have exceeded 5MB. If so the oldest log content will be deleted.

Downloading log files

To retrieve the log files:

• Click Generate logs
• Wait a few seconds for the logs to be generated
• Click Download logs. A zip file containing all logs will be available in the normal download directory of your PC. The file name is connect-logs- extended with the Hostname of the Zenitel Connect Pro, and date and time when the log file was generated. Example: connect-logs-vs-icx510-2025-02-18-11-59-15.zip
• Unzip the downloaded file. In the folder zcp you will find the log files. These are text files that can be opened in e.g. Notepad or Notepad++.

Logging to Syslog

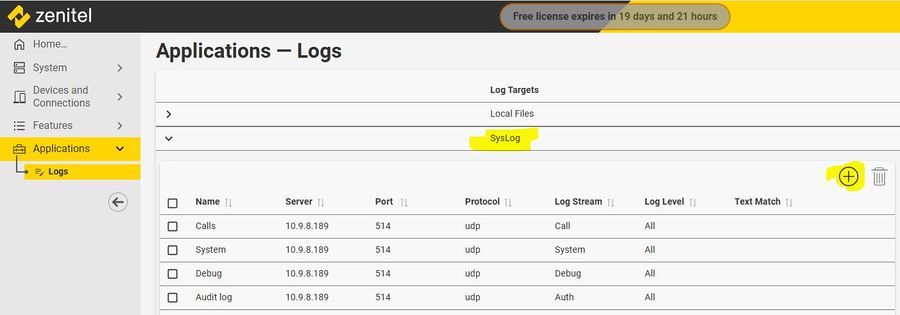

To enable logging to an external Syslog server select "Log Target" = SysLog, and select the icon to add a new record. Enter the following data:

• Name: Any descriptive text
• Server: The IP address of the Syslog server
• Port: Normally port 514 when using UDP protocol, and 6514 when using TCP protocol
• Protocol: Select UDP or TCP
• Log Stream: Let you select which of the 4 log types; Debug, System, Call or Audit
• Log Level: Select Syslog severity level, or "All"
• Text Match: Filter on a specific text in the log string. Only log events that contain this text will be sent.

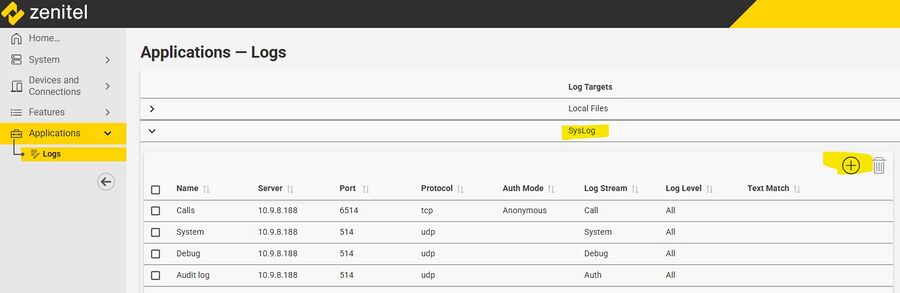

Logging to Syslog server
