Mounting Card reader on TEIV-4+

From Zenitel Wiki

The TEIV-4+ has a card reader slot, fitting either:

  • HID Signo 20 ReaderTerminal Strip
  • TWN4 Palon Compact LEGIC PCB
Note icon Card readers are not provided by Zenitel


Do the following when mounting the card readers:

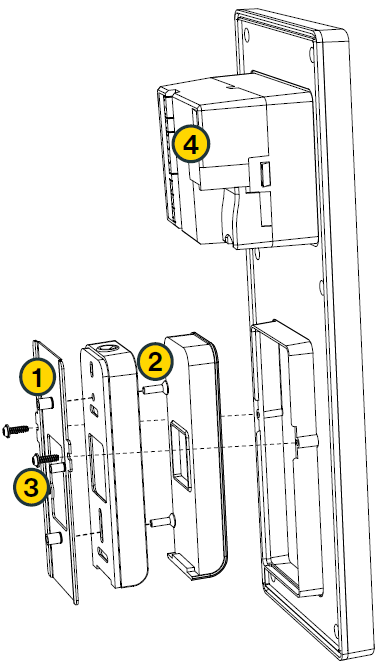

HID Signo 20 Reader Terminal Strip

  1. Unscrew the Card Reader Bracket. Make sure the Self-Clinching Standoffs are facing outwards.
  2. Remove the back lid from the card reader, and fasten the lid to the Card Reader Bracket. Then reattach the card reader to the lid.
  3. Fasten the Card Reader bracket to the TEIV-4+.
  4. Terminate the card reader to an I/O port on the TEIV-4+.

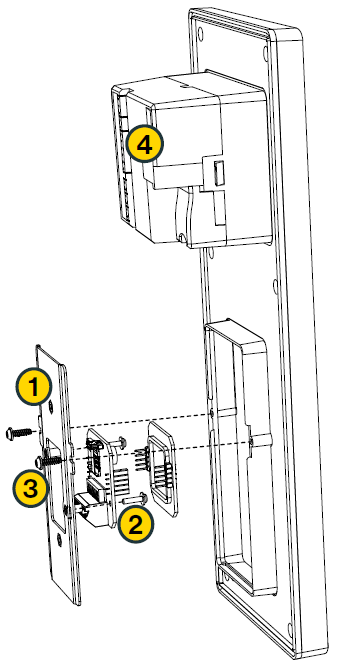

TWN4 Palon Compact LEGIC PCB

  1. Unscrew the Card Reader Bracket. Make sure the Self- Clinching Standoffs are facing inwards.
  2. Separate the two parts of the card reader and attach the part with screw holes to the Card Reader Bracket. Then reassemble the card reader.
  3. Fasten the Card Reader bracket to the TEIV-4+.
  4. Terminate the card reader to an I/O port on the TEIV-4+.
