Mounting and Assembly Kit for IP Substation - 1008091000

From Zenitel Wiki

Assembly kit components

Highlights

  • An optional Mounting and Assembly Kit includes gaskets, a two inch loudspeaker, loudspeaker housing and microphone with mounting block for call LED
  • This kit is based on items used in the IP Vandal Resistant Substation

Dimensions

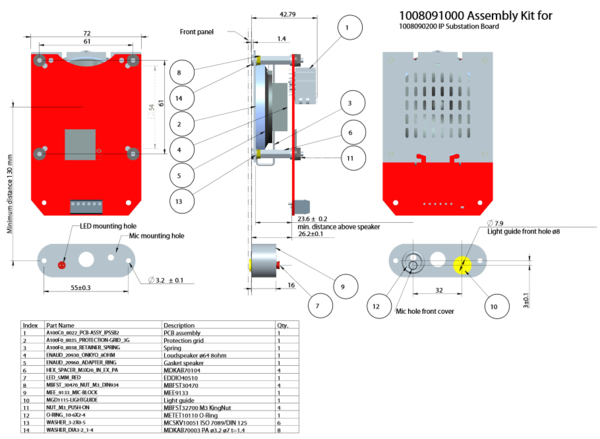

IP Substation Kit Mounting Dimensions (mm)

Mounting

Mounting details


Related Article
