OLED Labels
From Zenitel Wiki
This menu option is available for the Turbine stations TCIV-5+, TCIS-4 and TCIS-5 and and let you configure the OLED display in the station.
In the station web interface, enable Advanced Configuration mode and navigate to the OLED Labels menu:
 |

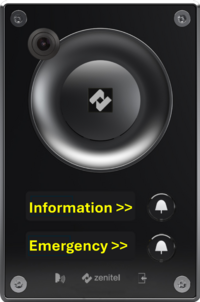

| OLEDs in TCIV-5+ |
 |

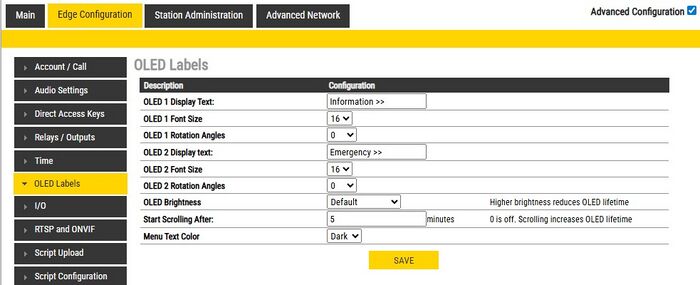

| OLED settings for TCIS-4, TCIS-5 and TCIV-5+ |
- OLED Display Text: Enter display text in the relevant fields for OLED 1 and OLED 2.
- OLED Font Size: The font size can be either 12 or 16
- OLED Rotation Angles: Available rotation angles are 0, 90 or 270 degrees. The two latter can be used if the station is mounted horizontally (from firmware 9.3.3.0)
- OLED Brightness: Brightness: Default, Bright, Extra Bright
- Start Scrolling After: Set the time in minutes after which horizontal scrolling of the display text should start
- Menu Text Color: Select between Dark (default) background and light text, or Light background and dark text (Inverse video).
