Operating the TEIV-1+

Making a call

• To make a call – you need to press “#” followed by the number to be called to and then the checkmark (v), e.g. # 201 v
• To make a call using address book – use the checkmark after selection is done
• To activate a relay from keyboard, you need to press a pin code (e.g. 4 digits).

Defining PIN code(s)

• To define a pin code – create a csv file with 4 digits numbers as shown in the example below:

• When saving the CSV file the seperation character should be defined as semicolon (;).

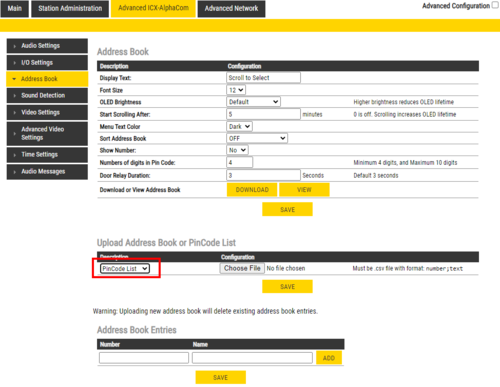

• Upload the pin code list file under the Address Book menu as shown below

Encrypted pin codes are stored here: http://[IP address of the station]:8080/state/config/gui/door_access_control Make sure port 8080 port in the device firewall is opened
