PhonerLite SIP Client

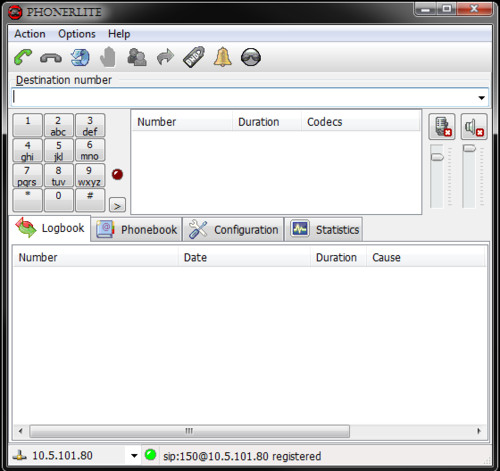

The PhonerLite SIP Client gives the opportunity to receive calls from the IP Video Door Station. In addition it shows a live video stream from the inbuilt camera. The video stream is active as long as the call is active.

PhonerLite 1.PNG


The app can be downloaded from this site: http://phonerlite.de/index_en.htm

Install and run the app on your Windows PC.


When the app starts it immediatly wants to be configured. The following parameters must be entered:

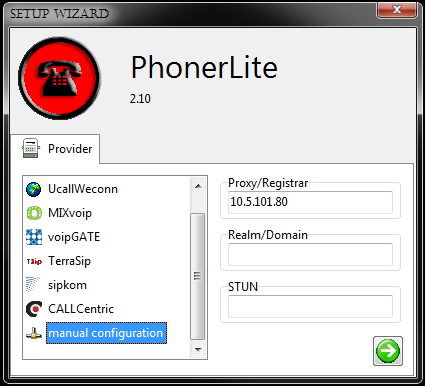

  • Proxy/Registrar: Enter the IP address of the AlphaCom
PhonerLite Setup1.PNG

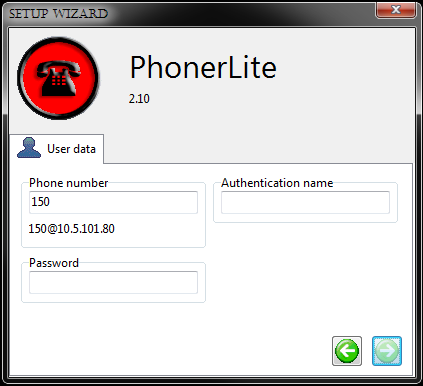

  • Phone number: The directory number the SIP Client should register as in the AlphaCom
PhonerLite Setup2.PNG

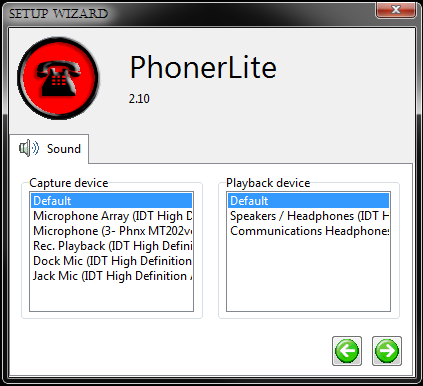

  • Select the wanted audio devices
PhonerLite Setup3.PNG

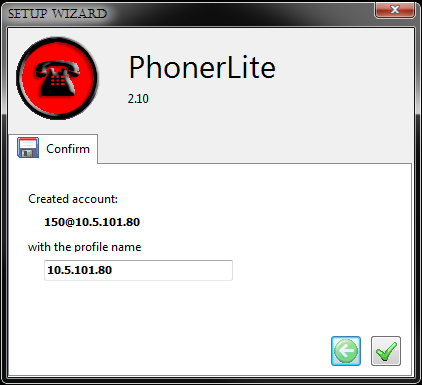

  • Confirm the settings
PhonerLite Setup4.PNG



PhonerLite 1.PNG


The PhonerLite SIP Client should now register and show Ready.


Select the Phonebook by clicking the Phonebook tab.

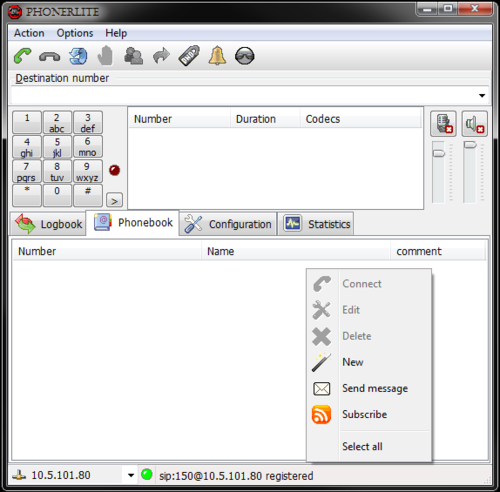

  • Right click the Name tab and select New
PhonerLite Phonebook1.PNG

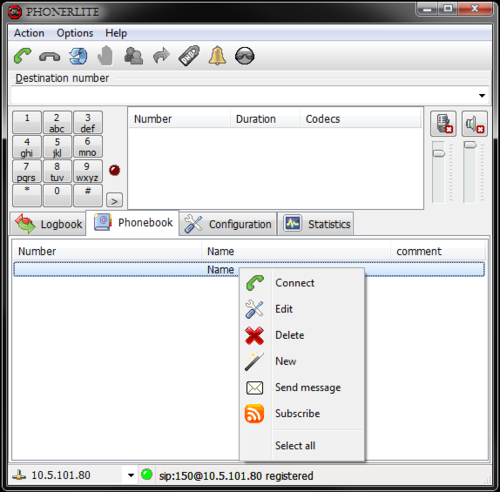

  • Right click the new line under Name and select Edit. Type in a descriptive name of the contact:
PhonerLite Phonebook2.PNG

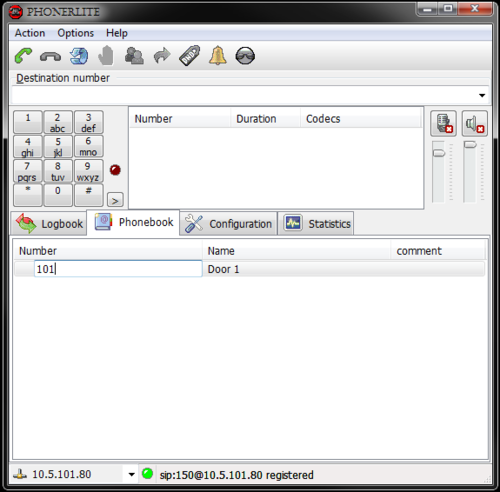

  • Right click the new line under Number and select Edit. Type in the directory number of the contact:
PhonerLite Phonebook3.PNG

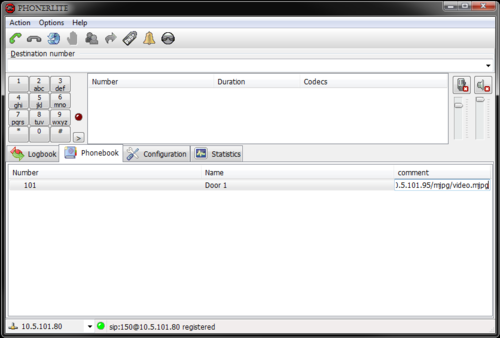

  • Right click the new line under comment and select Edit. Type in the URL for the camera:
IP Video Door Station with CP-CAM camera: (http://<Camera-IP>/mjpg/video.mjpg)
IP Video Door Station with Axis camera: (http://<Camera-IP>/mjpg/video.mjpg)
Turbine Video Station: (http://<Camera-IP>:8090/mjpg/video.mjpg)
PhonerLite Phonebook4.PNG

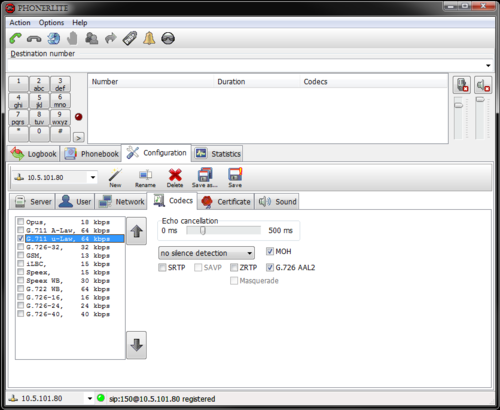

Select the Configuration tab, and then the Codecs tab. Disable all codecs except G.711 µ-Law. complete the configuration by clicking the Save disk symbol:

PhonerLite Codec1.PNG

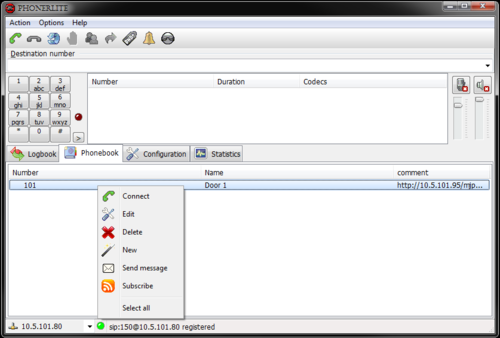

Make a call either by dialing manually on the keypad, or by rightclicking the wanted contact in the phonebook and selecting Connect.

PhonerLite Call1.PNG


Click the red phone symbol to hang up.


AlphaPro

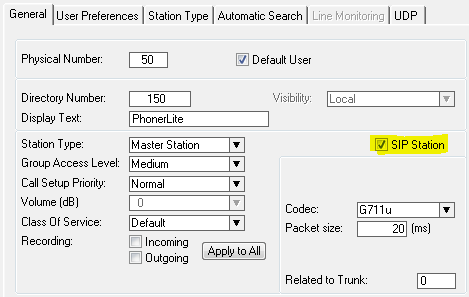

The PhonerLite SIP Client for Windows PC must be configured in the AlphaCom as a SIP station.

PhonerLite AlphaPro1.PNG

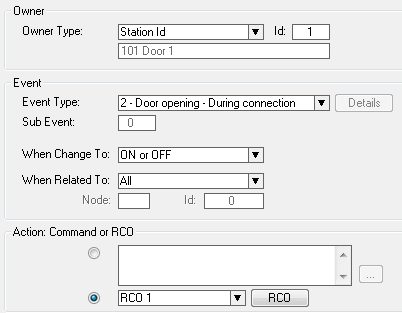

The PhonerLite SIP Client supports SIP INFO and can perform door opening the standard way.

PhonerLite AlphaPro2.PNG
