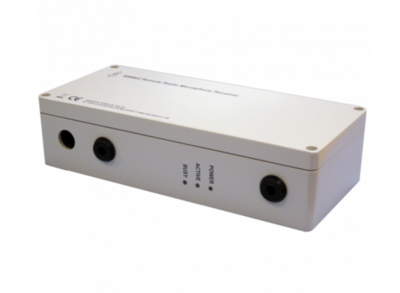

RRM02 Remote Radio Microphone Receiver
- RRM02 (Remote Radio Microphone Receiver)
- A compact radio microphone receiver that enables Roving Public Address (RPA) functionality to selected loudspeaker zones. Designed for integration with ASL Voice Alarm and Public Address systems, the RRM02 provides a convenient alternative where a Station Announcement Point is not required and can also interface with third-party PA systems through its contact output functionality.
 |
| RRM02 Reciever |
Key Features
- Compact wireless mic receiver for public address zones, ideal where fixed microphones (like SAP02) aren't needed
- Works with ASL and non-ASL PA systems, using serial interface or rely contact for PTT control
- Built-in diversity receiver supports 10 selectable frequencies and uses a unique pilot tone for secure transmissions
- Flexible antenna setup allows for local or remote mounting: supports phantom-powered antenna amplifiers
- Rugged IP65 enclosure with wall-mounting, status LEDs, and internal DIN rail terminals for easy installations
Required Documentation
(Please take note of the dates and download the latest manuals available)
- User Manual: User Manual RRM02
- Datasheet: Datasheet RRM02 vx
These documents can be found on the Zenitel website by searching RRM02 and then going to the Documents section.
