Reading Router Dynamic Config

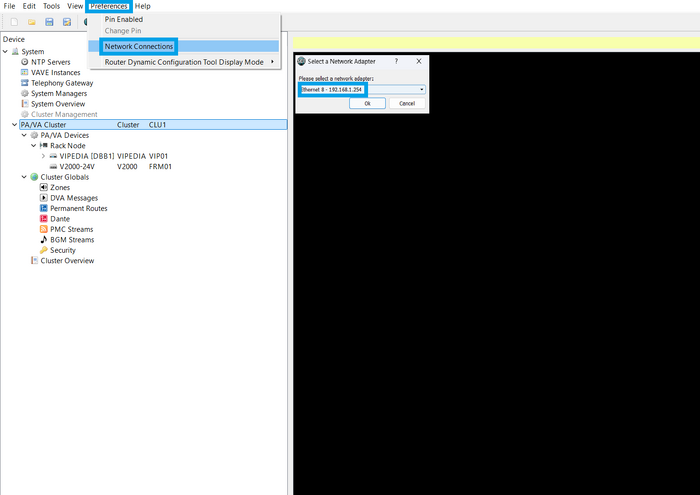

- Ensure your preferences are set to the correct laptop adapter which is on the same network as the Vipedia-12:
 |
| Selecting correct ethernet adapter |

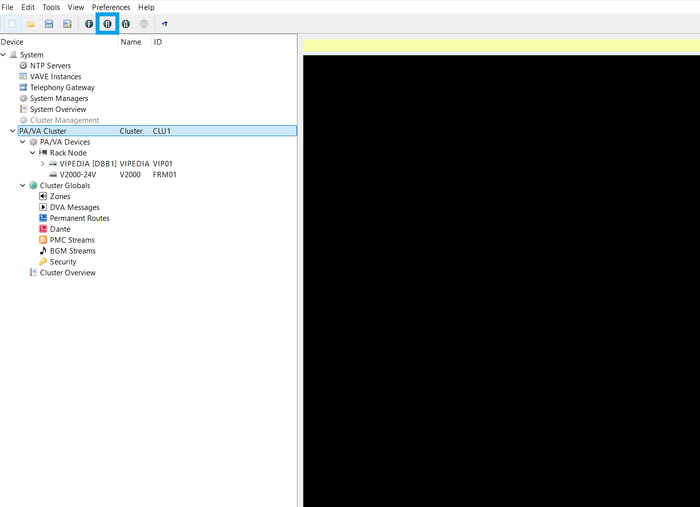

- Click the RDT icon (highlighted with the R symbol) to open the RDT:
 |
| Router Dynamic Tool highlighted as an R icon |
- Click on Manage Audio Settings > Click Read and save the .csv file a known location.
 |
| Saving Router Dynamic Config |
Writing Router Dynamic Config
|
Writing will commit settings to the Vipedia-12 memory, overwriting ay previously configured settings |
- Select Write and Commit in the RDT
 |
| Writing and Committing the .csv file |
- Select the .csv file
- Click Open
 |
| Selecting the .csv file |

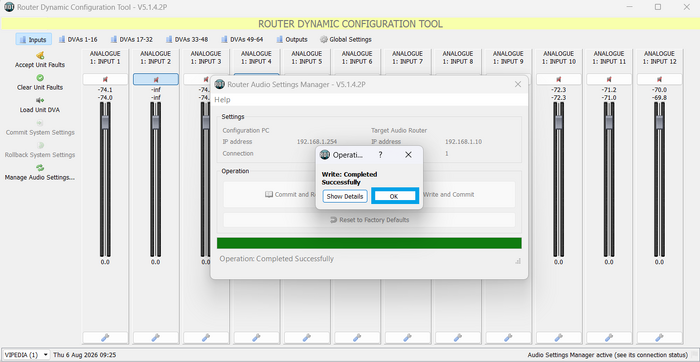

- After the Router Dynamic configuration has loaded onto the Vipedia-12, you should see a pop-up menu stating "Write: Completed Successfully" > Click OK
 |
| Router Dynamic configuration write complete |

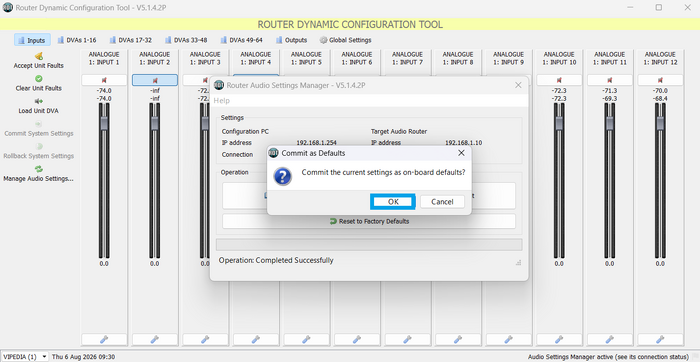

- Another pop up menu will appear after this, stating "Commit the current settings as on-board defaults?" > Click OK
 |
| Committing the written Router Dynamic configuration |
