Siemens SiPass - ICX-AlphaCom integration

From Zenitel Wiki


Introduction

Description

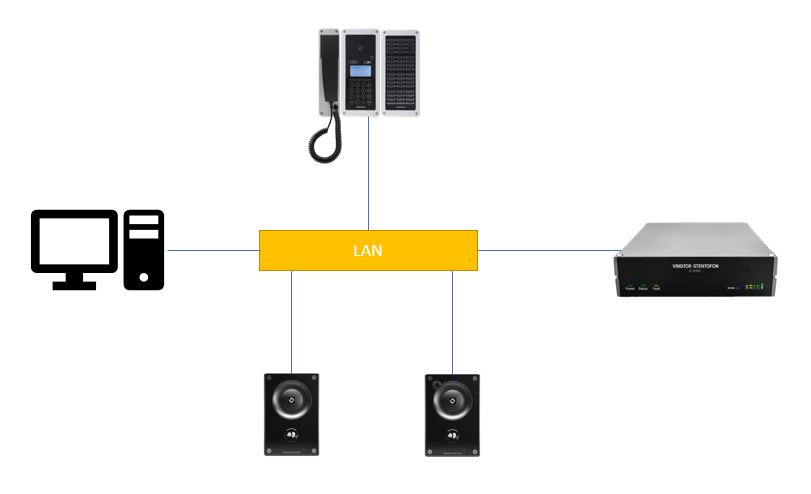

The integration between SiPass and the AlphaCom is OPC based.

The article describes how to interface SiPass integrated with the Zenitel stations in order to get the Alarms and Events via OPC.

Applications:

  • Hotels and Resorts
  • Casinos
  • Military establishments
  • Police forces
  • Fire brigades
  • Prisons
  • Hospitals
  • Banks and Financial Institutions
  • Industries


Licensing

ICX

ICX requires the presence of the appropriate API/OPC license. With ICX it is possible to purchase a single Product Key which covers all stations connected to all ICX's in a network. ICX licenses can be stacked, i.e. 1x 1002602306 + 2x 1002602309 gives 1088 API licenses which can be used on 2 or more ICXs.

  • 1002602306 - ILI-API64 - API License Supporting 64 Stations
  • 1002602309 - ILI-API512 - API License Supporting 512 Stations

AlphaCom

The AlphaCom requires the presence of the appropriate API/OPC license. Note that every AlphaCom in an AlphaNet requires such a license.

  • 1009649901 - STENTOFON API License Supporting 40 Stations
  • 1009649902 - STENTOFON API License Supporting 80 Stations
  • 1009649903 - STENTOFON API License Supporting 160 Stations
  • 1009649904 - STENTOFON API License Supporting 240 Stations
  • 1009649905 - STENTOFON API License Supporting 320 Stations
  • 1009649906 - STENTOFON API License Supporting 400 Stations
  • 1009649907 - STENTOFON API License Supporting 552 Stations

OPC Server Configuration

Follow the installation instructions for OPC Classic for AlphaCom - Installation

Note icon Note: At this time, there is a buffer overflow bug in SiPass that will crash the server if the message format exceeds the limits. It is suggested to remove some data from the message field. This can be achieved by changing the format to use to NoPrefixDirNo in a single node system, and by removing the timestamp from each message. If you notice any part of your message missing from the SiPasss Alarms display, you must shorten the message.


An example configuration could look like this

Sipass OPC AE.jpg
