TFIX V2 - Installation Solutions
From Zenitel Wiki
In noisy areas an external speaker and/or a beacon lamp can be used to indicate an incoming call or PA announcement.
Contents
Options

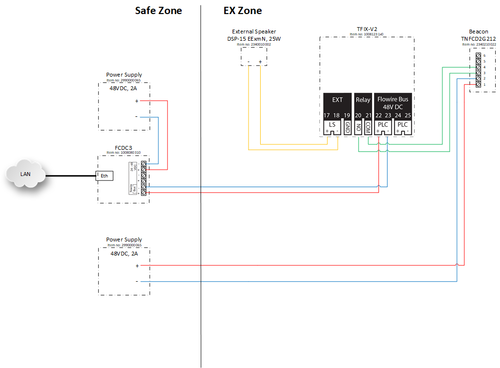

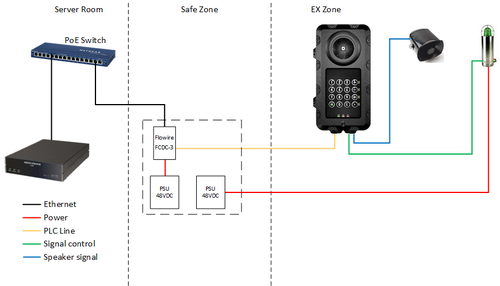

TFIX V2 with external speaker and beacon
A single TFIX V2 with external speaker and beacon in the EX zone, where all the controlling equipment is located in the safe zone, either in the server room, or in a closed cabinet in a more convenient placement out in the field.
The cabinet consist of:
- 1 Flowire unit; FCDC3 (item 1008080310)
- 1 48VDC Flowire PSU (item 2990000065)
- 1 48VDC PSU for beacon (item 2990000065)
TFIX V2 with external speaker
A single TFIX V2 with external speaker in the EX zone, where all the controlling equipment is located in the safe zone, either in the server room, or in a closed cabinet in a more convenient placement out in the field.
The cabinet consist of:
- 1 Flowire unit; FCDC3 (item 1008080310)
- 1 48VDC Flowire PSU (item 2990000065)
TFIX V2 with beacon
A single TFIX V2 with beacon in the EX zone, where all the controlling equipment is located in the safe zone, either in the server room, or in a closed cabinet in a more convenient placement out in the field.
The cabinet consist of:
- 1 Flowire unit; FCDC3 (item 1008080310)
- 1 48VDC Flowire PSU (item 2990000065)
