TKIE Restore Factory Defaults

From Zenitel Wiki

A Turbine IP Station may have to be reset to its original factory default settings if, for instance, the password to the station web interface is forgotten. The defaults can either be set to Activated DHCP or Static IP.

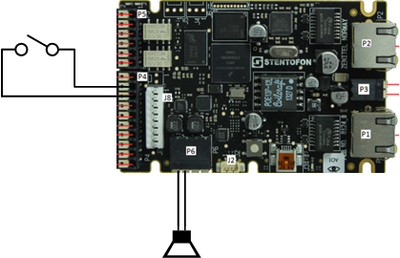

Preparation

  1. Connect a speaker to the speaker output
  2. Connect a button to input 1


Reset to Factory Default Settings with Activated DHCP

To reset:

  1. While pressing the button, power up the station by connecting to a PoE switch
  2. Hold the button until the station audio starts counting, and release the button on count 1
  3. Press and hold the button on count 5 and release on count 0
  • If there is no 0 count, the procedure has failed and you have to start again
  • Press the button, and the station will speak its IP address

Factory default values

Station IP address: Determined by DHCP server. If no DHCP server is available, it gets a random 169.254.x.x address.
Username: admin
Password: alphaadmin

Reset to Factory Default Settings with Static IP

To reset:

  1. Connect a speaker to the speaker output
  2. Connect a button to input 1
  3. While pressing the button, power up the station by connecting to a PoE switch
  4. Hold the button until the station audio starts counting, and release the button on count 1
  5. Press and hold the button on count 3 and release on count 0
  • If there is no 0 count, the procedure has failed and you have to start again
  • Press the call button, and the station will speak its IP address

Factory default values

Station IP address: 169.254.1.100
Username: admin
Password: alphaadmin
