TKIV+ Dimensions & Mounting Instructions

From Zenitel Wiki

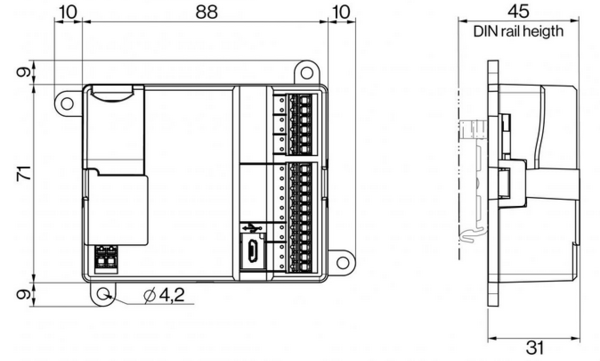

Dimensions CPU module

TKIV+ CPU module dimensions

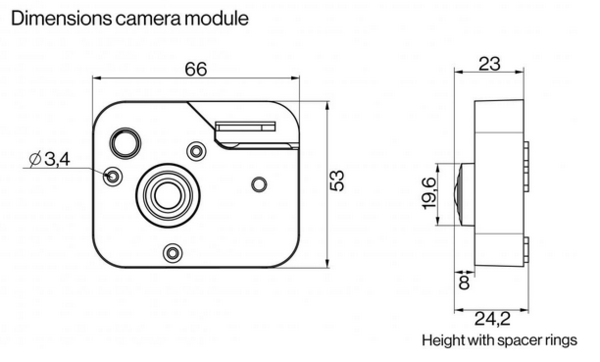

Dimensions Camera module

TKIV+ Camera Module dimensions


TKIV+ Camera Module Mounting instruction

The installation should be performed in an ESD Safe working environment using a flat-head screwdriver.

The flat cable comprises one side that has a blue tape and one side that has the contact.

Flat Cable



Note icon Make sure that the distance between the CPU module and the camera unit does not exceed 50 mm so as not to strain the cable.

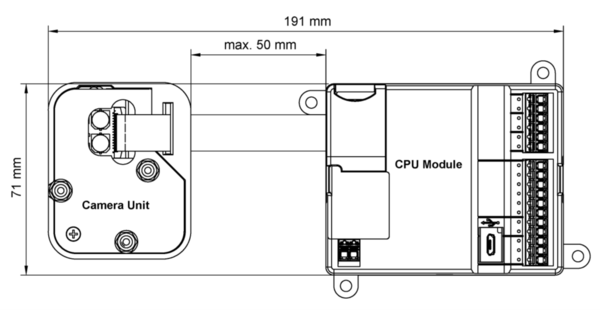

Flat Cable length


Connecting the Flat Cable to the CPU Module

1. Use a flat-head screwdriver to release the snap locks on both short sides of the CPU module and gently pry the cover off.
Flat Cable open.png
2. Open the FFC contact on the CPU board by carefully lifting the lever at both ends.
Flat Cable contact.png
3. Insert the cable into the contact with the blue tape side facing up and the contact side facing down.
Flat Cable connection.png
4. Close the contact by pressing down the lever at both ends simultaneously.


Connecting the Flat Cable to the Camera unit

Flat Cable into the Camera unit
  1. Open the FFC contact on the camera unit by carefully lifting the lever at both ends.
  2. Thread the flat cable through the strain relief on the camera unit.
  3. Insert the cable into the contact with the contact side facing up and the blue tape side facing down.
  4. Close the contact by pressing down the lever at both ends simultaneously.
