Uploading HTTPS certificate

This article describes how to upload a SSL certificate to a Zenitel device for use with HTTPS.

Version 9 and later

Enable Advanced Configuration Mode.

• Select Advanced Network and from the left hand menu select HTTPS Certificates. The current self-signed HTTPS certificate is listed.

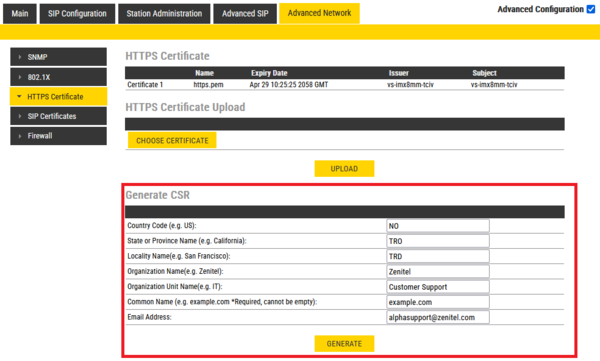

• First, generate a Certificate Signing Request (CSR). Enter the required data in each field and click Generate.

Enter the required information and click Generate

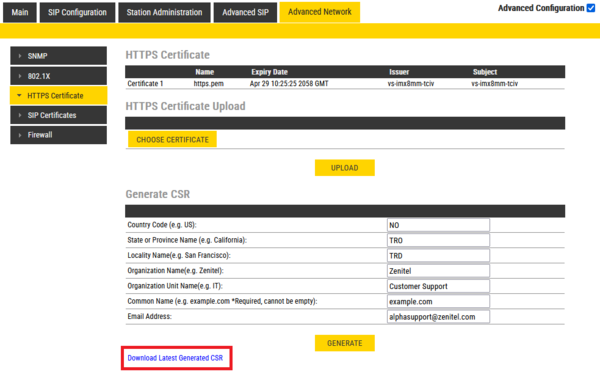

• Download the CSR

Download the CSR

• Get a SSL certificate from a certified Certificate Authority (CA) using the generated CSR
• The name of the SSL certificate must be changed to end with _https.pem.
  • If there are multiple certificates the last one will always be used.

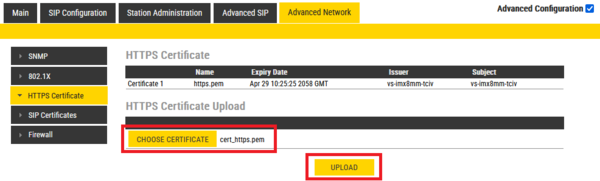

• Click on Choose Certficate and browse to the location of the SSL certificate. When selected click on the Upload button

Upload the SSL Certificate

Version 8 and earlier

Enable Advanced Configuration Mode.

• Select Edge Configuration/SIP Configuration and from the left hand menu select Certificates. The Turbine certificates are listed.
• First, generate a Certificate Signing Request (CSR). Enter the required data in each field and click Generate.

Enter the required information and click Generate

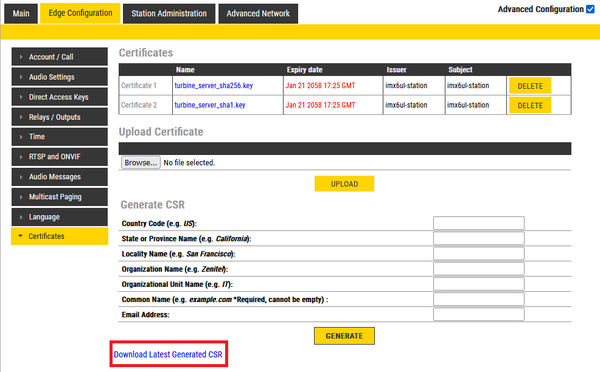

• Download the CSR

Download the CSR

• Get a SSL certificate from a certified Certificate Authority (CA) using the generated CSR
• The name of the SSL certificate must be changed to end with _https.pem.
  • If there are multiple certificates the last one will always be used.
• Click on Choose file and browse to the location of the SSL certificate. When selected click on the Upload button

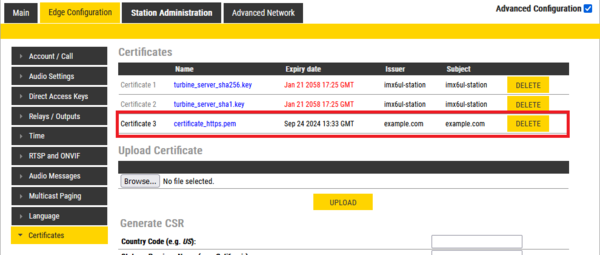

Uploaded the SSL Certificate
