The Vipedia Networkcard Manager is a software tool, in the form of a GUI, that is to be used alongside the Update Manager and can be found in the Tools folder of the firmware bundle, alongside the Update Manager. It enables you to perform a Net-VIPA software update on your Vipedia-NET card, which is integrated within a Vipedia-12 device.
Step by Step Instructions
Exporting The VIPA Configuration From The SCT Tool
- A valid VIPA configuration file (.cfg) is required to target the Vipedia-NET cards.
- If you do not have a separate VIPA .cfg configuration file already, you can extract one from the SCT where the Vipedia-NET cards are configured:
Open the SCT and select File > Export VIPA configuration and save the .cfg file to a known location on you host PC.
 |
| Exporting The VIPA Configuration |
Populating The Fields Within NetworkCardManager
Open the Network Card Manager.
 |

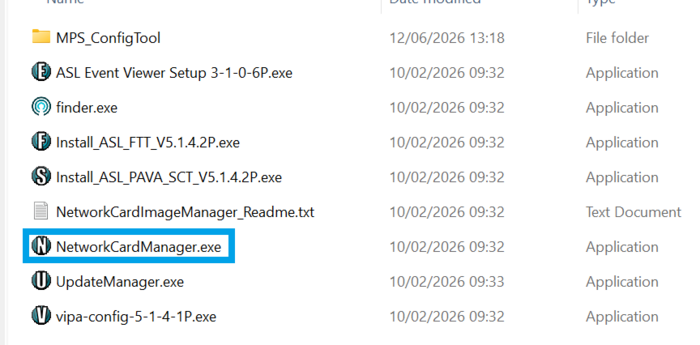

| Opening NetworkCardManager |
1. Click Select VCT Config and navigate to the known location of the VIPA .cfg file
2. Select the VIPA config file. You should now see all Vipedia-NET cards that are configured within the Vipedia Configuration, listed as target devices.
|
|
 |

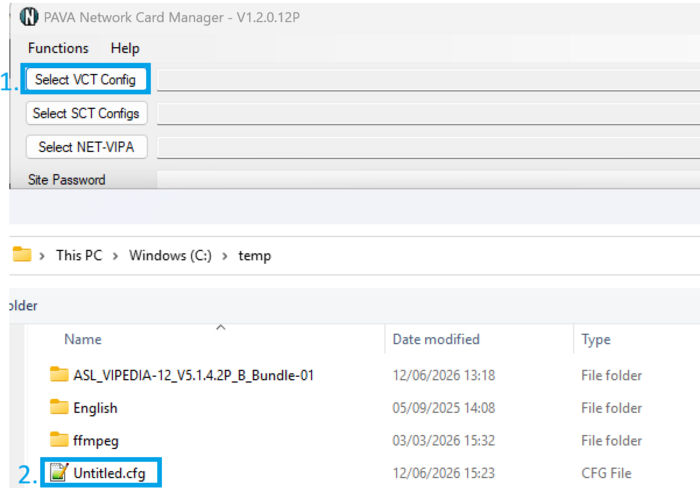

| Clicking Select VCT Config And Selecting .cfg File |
Press "Select NET-VIPA" and navigate to one of the following locations depending on the Vipedia-NET version you are updating to
 |

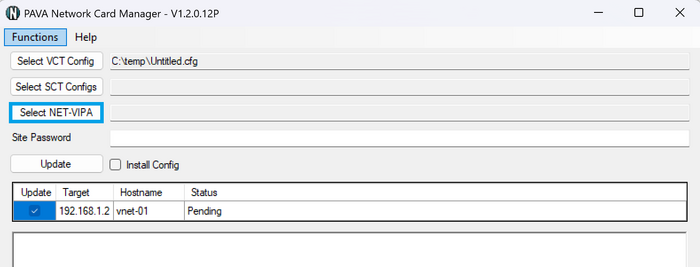

| Clicking Select NET-VIPA |
 |

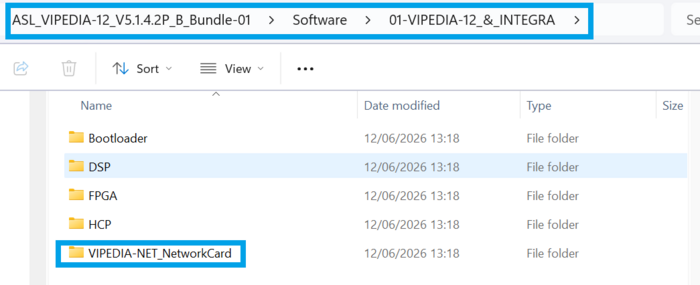

| Selecting File Within VIPEDIA-NET_NetworkCard |
Verifying Node Reachability
For peace of mind, to confirm visibility of all Vipedia-NET cards, you can ping each IP address and ensure that you receive a response:
1. Type CMD in the Windows start box.
2. In the command prompt terminal, type ping xxx.xxx.xxx.xxx (where x = IP address of Vipedia-Net)
 |

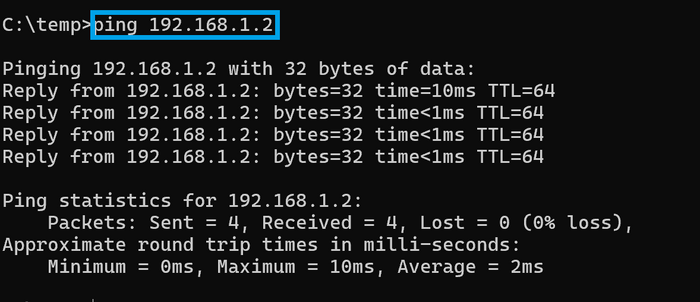

| Pinging Vipedia-NET card |
Starting The Vipedia-NET Software Update
Leave "Install Config" unchecked.
1. Press "Update" and you should see the Status change to Connected.
2. You can then monitor the live progress of the Net-VIPA software update within the debug window.
 |

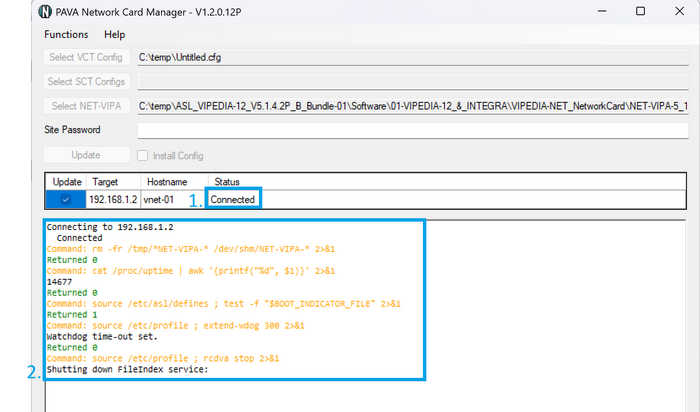

| Vipedia-NET card Update In Progress |
Complete Vipedia-NET Software Update
Once the update has finished, you should see "Complete" against each Vipedia-NET card in the tool.
 |

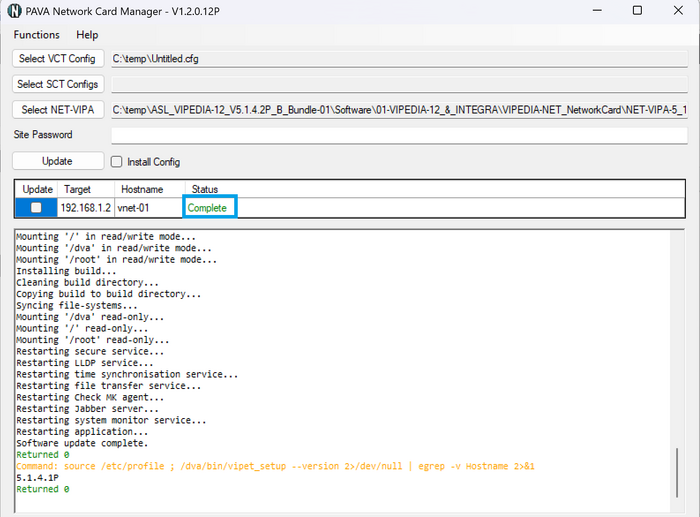

| Vipedia-NET card Update Complete |
Writing the Static Configuration
Reload the SCT configuration which includes the Vipedia-NET cards you have updated. The SCT incorporates the VIPA configuration and once written to the Vipedia Router it will also update the Vipedia-NET cards accordingly.
