The DBB (Digital BackBone) high speed digital audio bus and Ethernet allow up to four VIPEDIA-12 units to be connected within a rack.
DBB Groups can be connected via IP network to form a larger system where any input can be routed to any output of the system.
 |

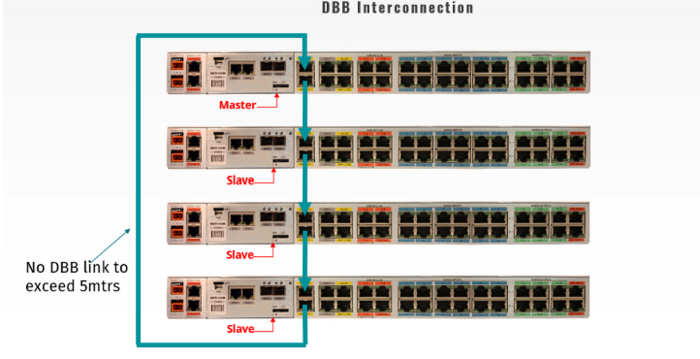

| DBB Topology Diagram View From The Vipedia-12-NET Back Panel |
Key Features
- 12 to 48 audio inputs
- 12 to 48 audio outputs/zones
- up to 12 MPS IP VIPA hosted microphones
- Up to 64 to 256 DVA messages
- On-board GPIO 12 to 48 contacts in and out
- Hardware bypass across all units
